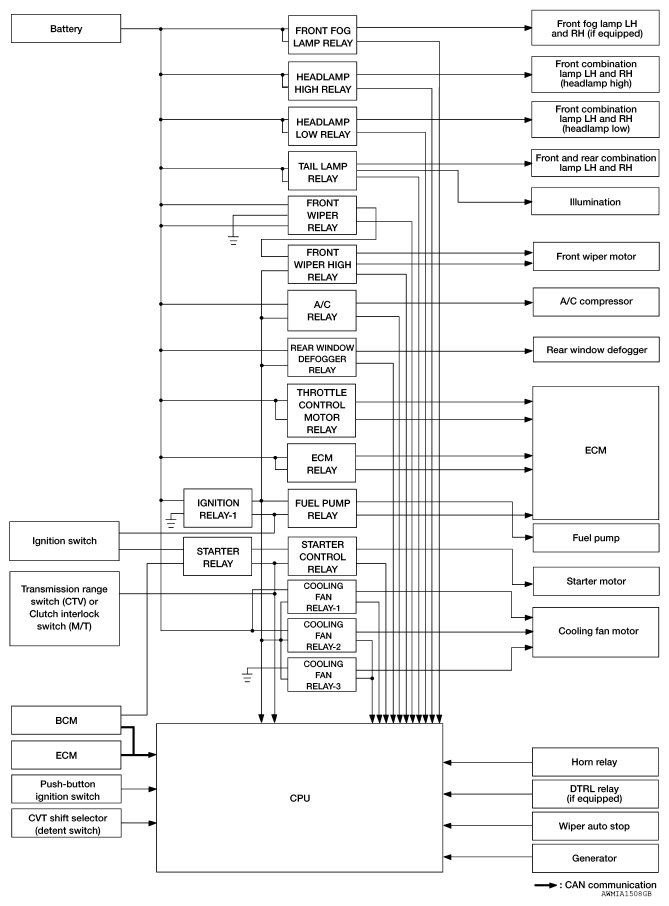

Home › Nissan-Datsun › 2014 › Sentra FE+S › Repair and Diagnosis › Electrical › Body Electrical › Power Control System (IPDM/Er) (With I-Key) › System Description › System › Relay Control System › RELAY CONTROL SYSTEM: System Diagram › System Diagram
