Power Steering Control System: Wiring Diagram

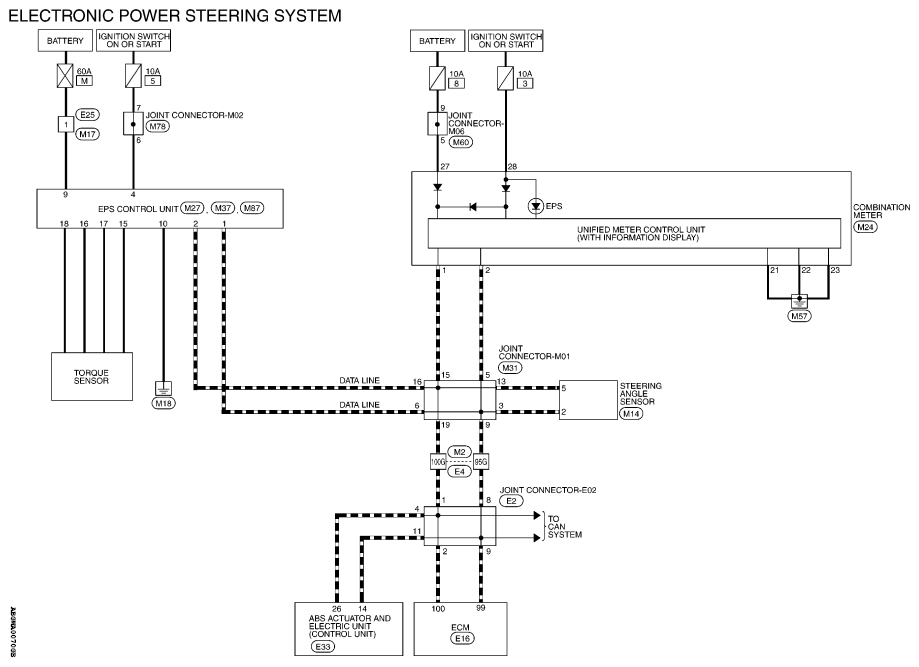

Fig 1: Electronic Power Steering Control System - Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
