Repair and Diagnosis
›
Transmission
›
Manual Transmission
›
Removal And Installation
›
Control Linkage
›
Exploded View
Exploded View

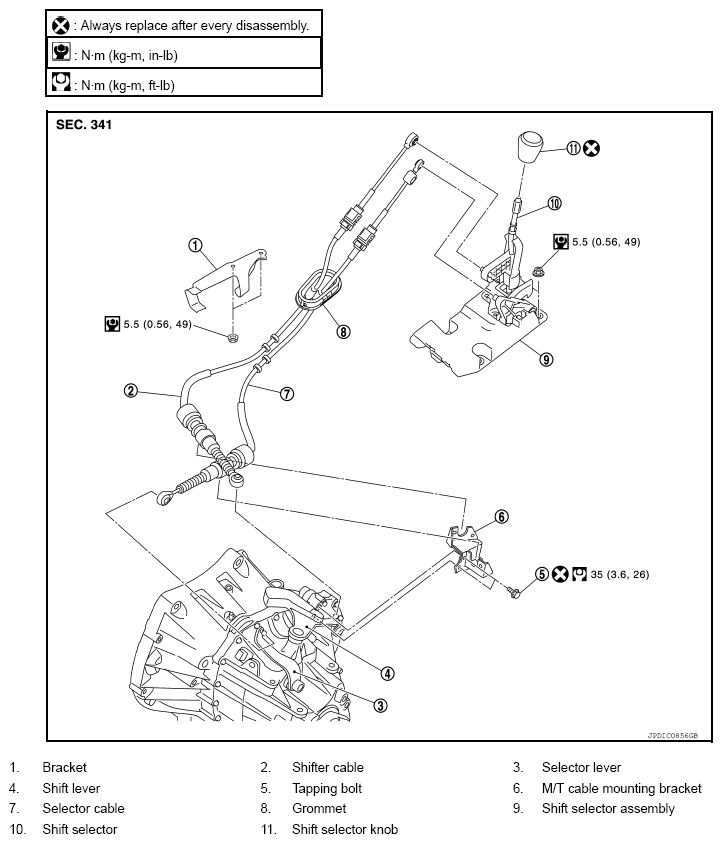

Fig 1: Exploded View Of Control Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
