Nissan-Datsun
›
2014
›
Sentra S, Standard Trans
›
Repair and Diagnosis
›
Transmission
›
Manual Transmission
›
Unit Disassembly And Assembly
›
MAINSHAFT And Gear
›
Exploded View
Exploded View

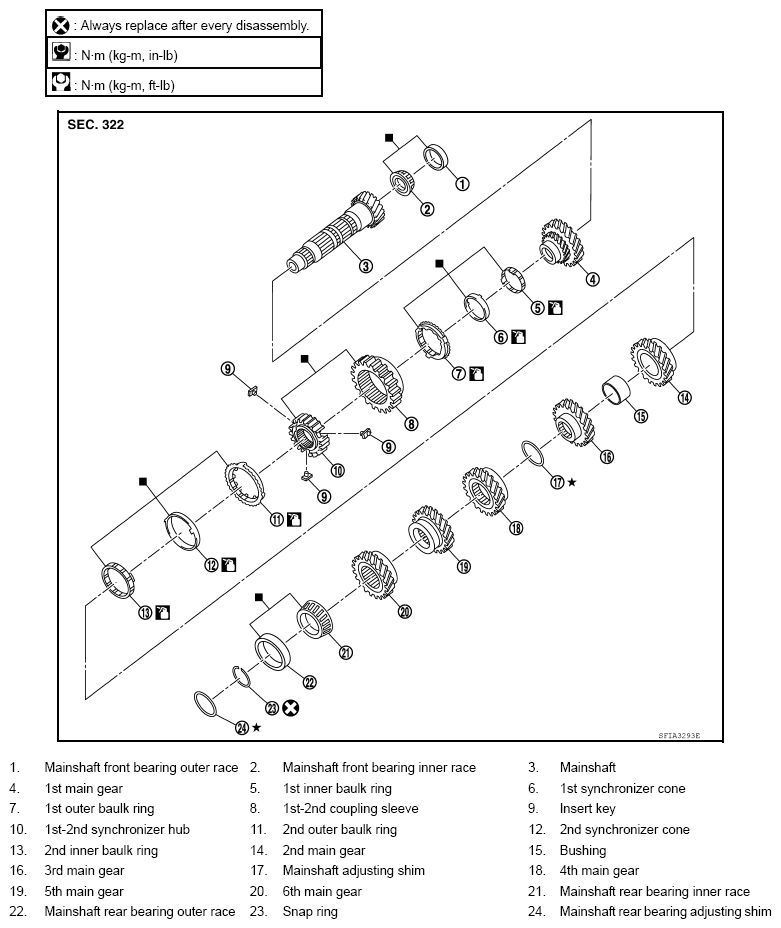

Fig 1: Exploded View Of Mainshaft And Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
