Shaft And Gear

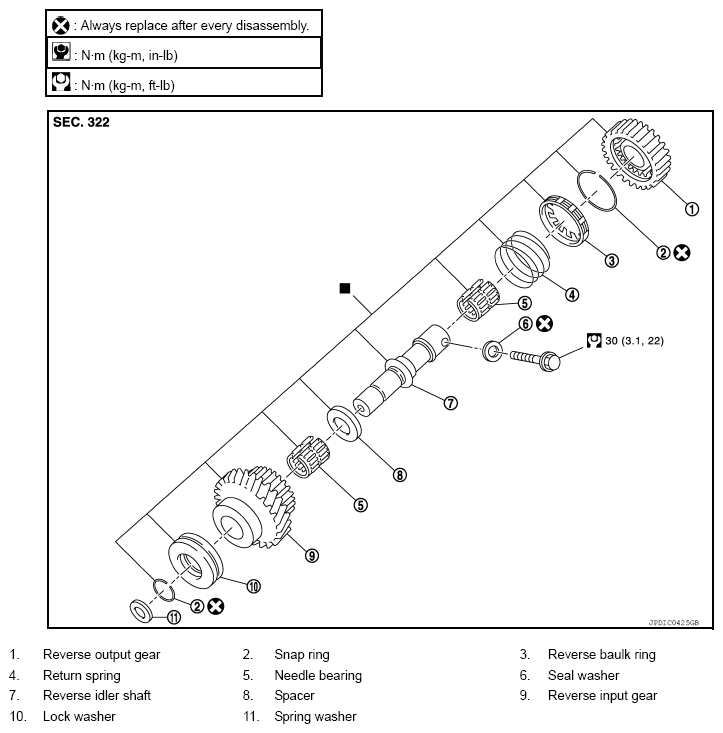

Fig 1: Exploded View Of Shaft And Gear With Torque Specifications (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

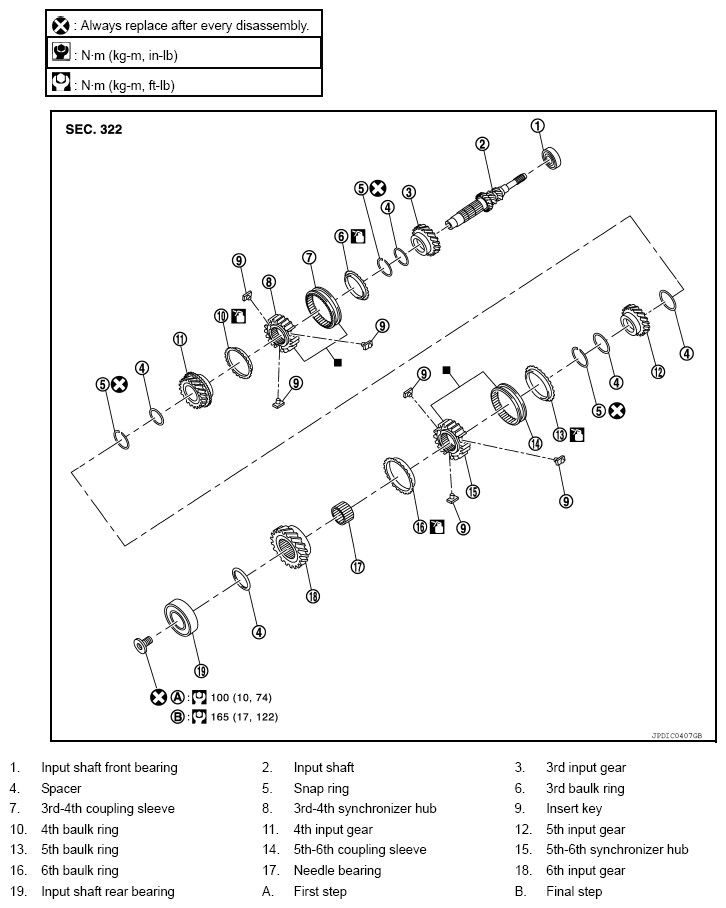

Fig 2: Exploded View Of Shaft And Gear (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

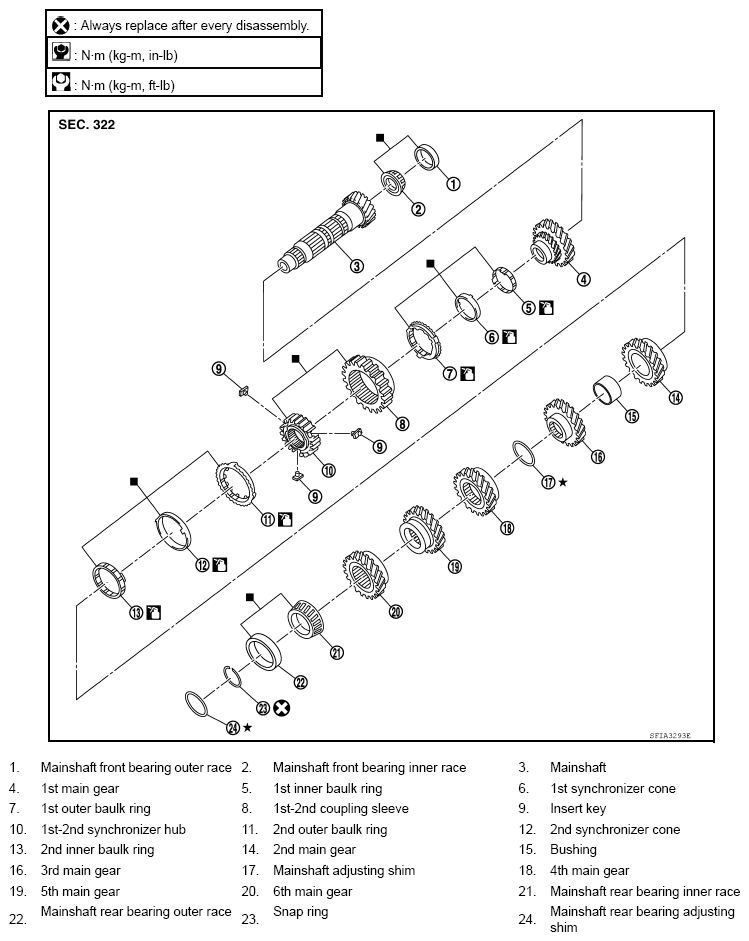

Fig 3: Exploded View Of Shaft And Gear With Torque Specifications (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
