FixVault
Home
›
Nissan-Datsun
›
2014
›
Sentra S, Standard Trans
›
Repair and Diagnosis
›
Transmission
›
Manual Transmission
›
Unit Disassembly And Assembly
›
Transaxle Assembly
›
Exploded View
›
Shift Fork And Fork Rod
Shift Fork And Fork Rod

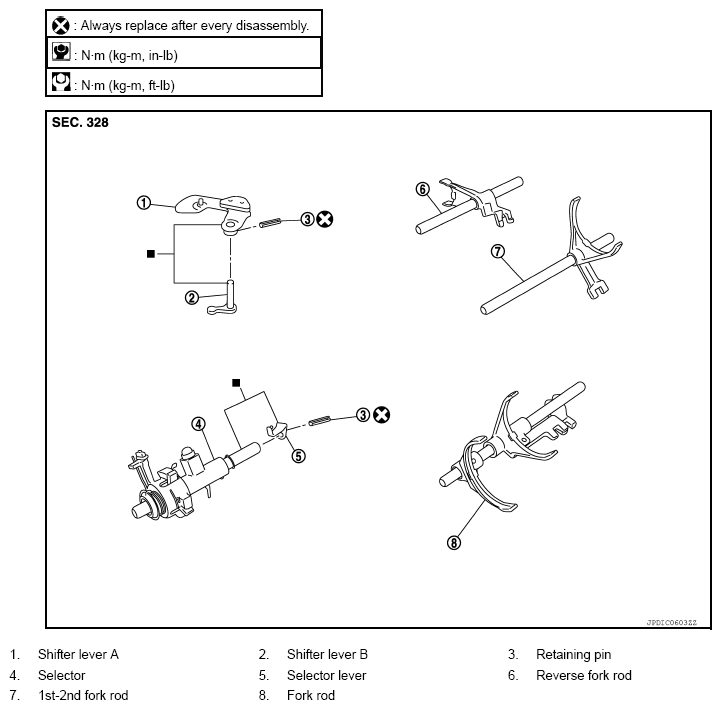

Fig 1: Exploded View Of Shift Fork And Fork Rod
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
