Security Control System (With Intelligent Key)
›
System Description
›
Component Parts
›
Component Parts Location
Component Parts Location

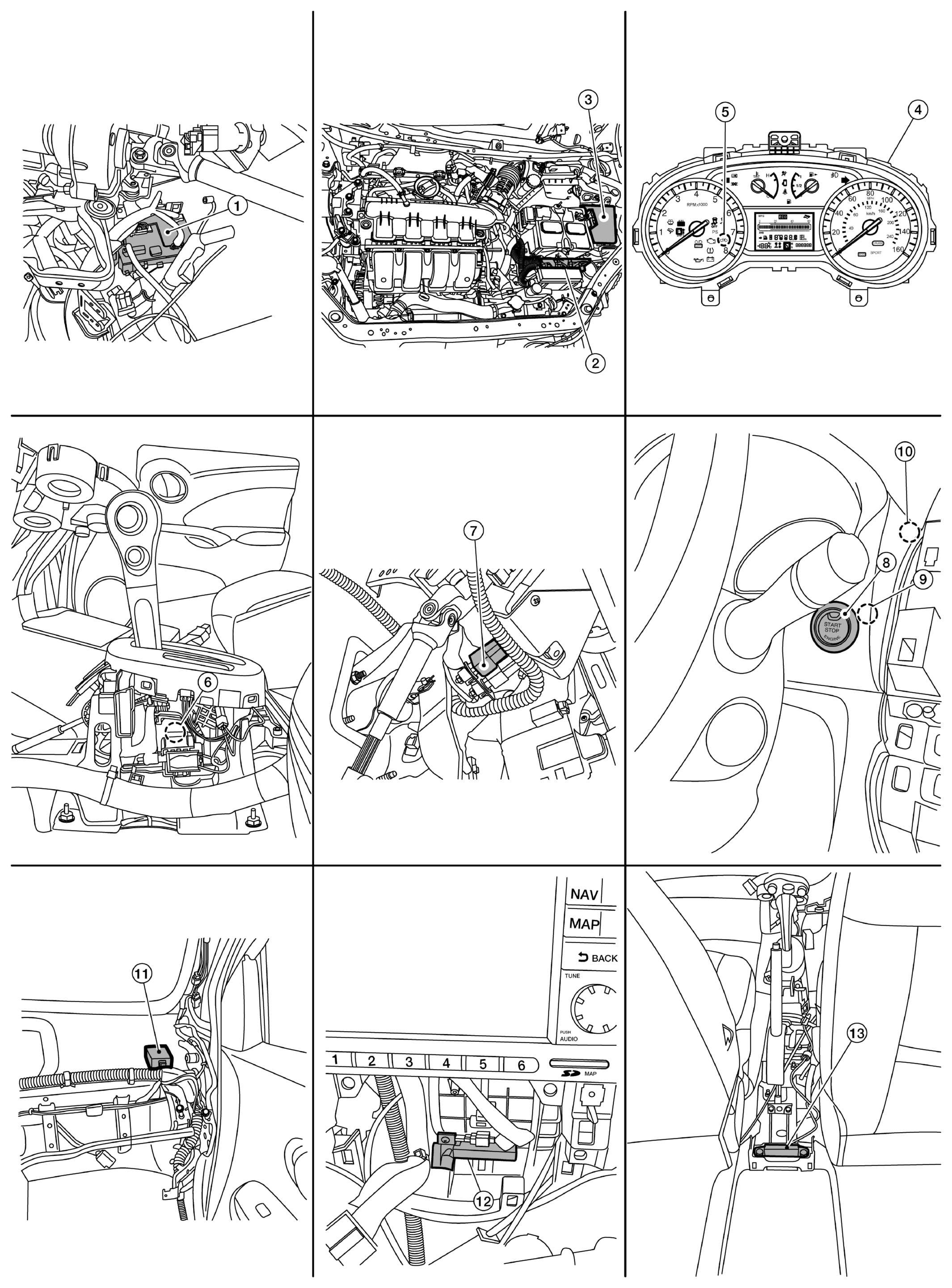

Fig 1: Identifying Security Control System Components (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

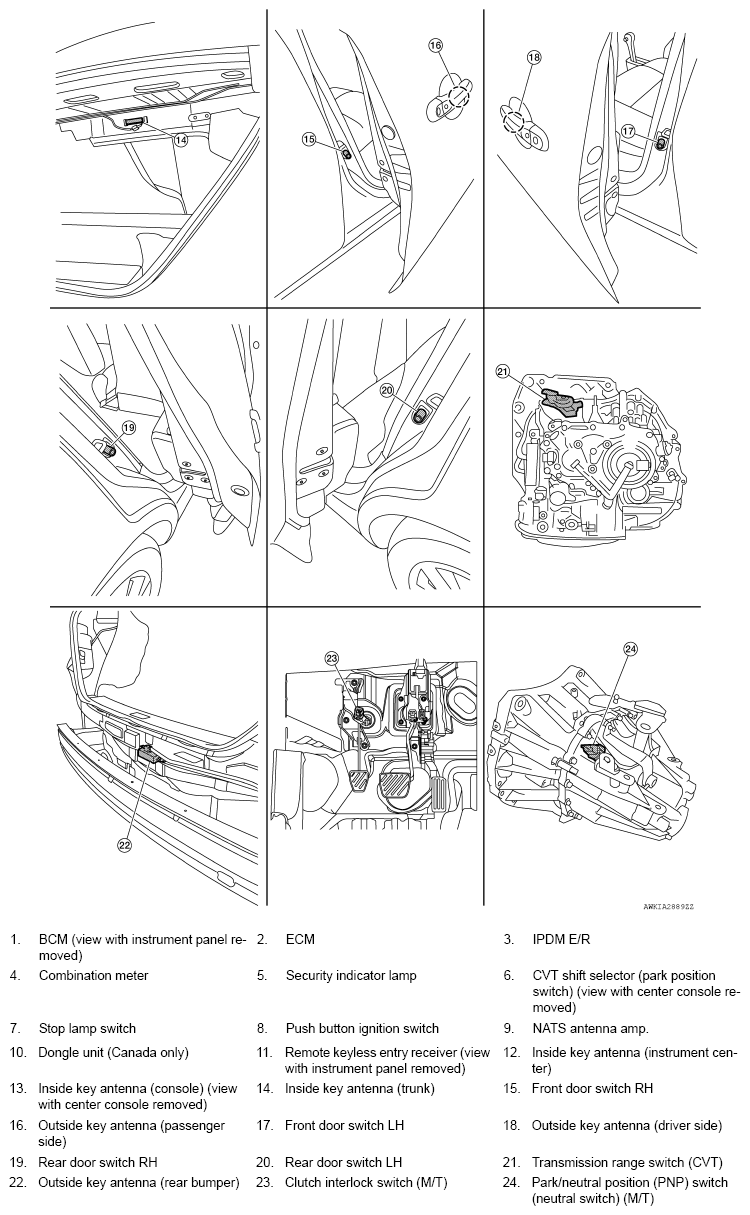

Fig 2: Identifying Security Control System Components (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
