Exploded View: Sunroof

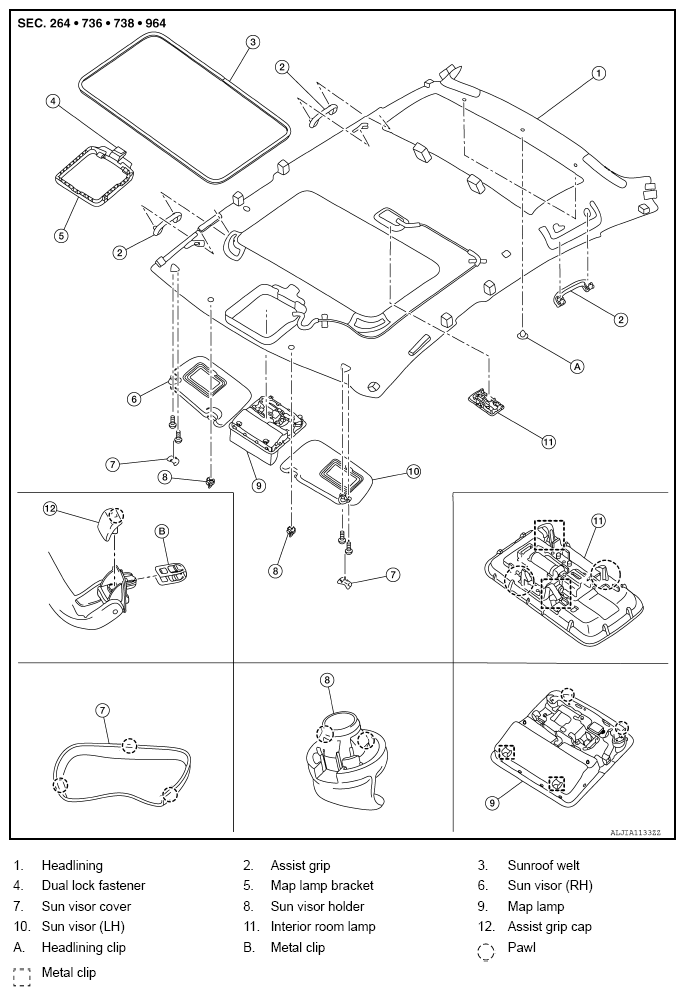

Fig 1: Exploded View Of Headlining (Sunroof)
G09459697Courtesy of NISSAN NORTH AMERICA, INC.
