Front Drive Shaft Boot
›
Exploded View
Exploded View

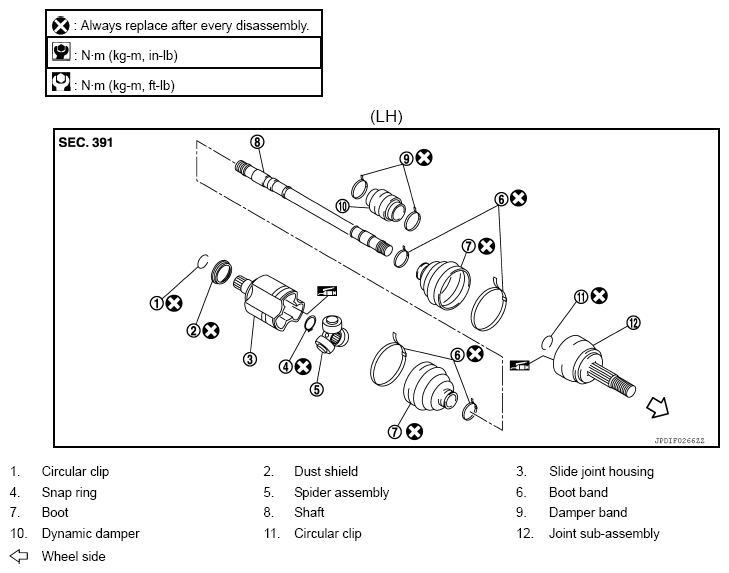

Fig 1: Exploded View Of Front Drive Shaft Boot (LH)
Courtesy of NISSAN NORTH AMERICA, INC.

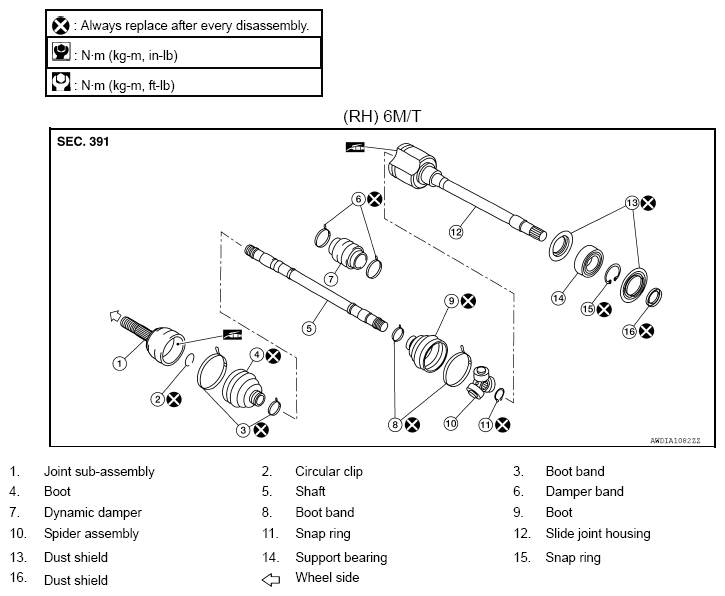

Fig 2: Exploded View Of Front Drive Shaft Boot (RH) 6M/T
Courtesy of NISSAN NORTH AMERICA, INC.

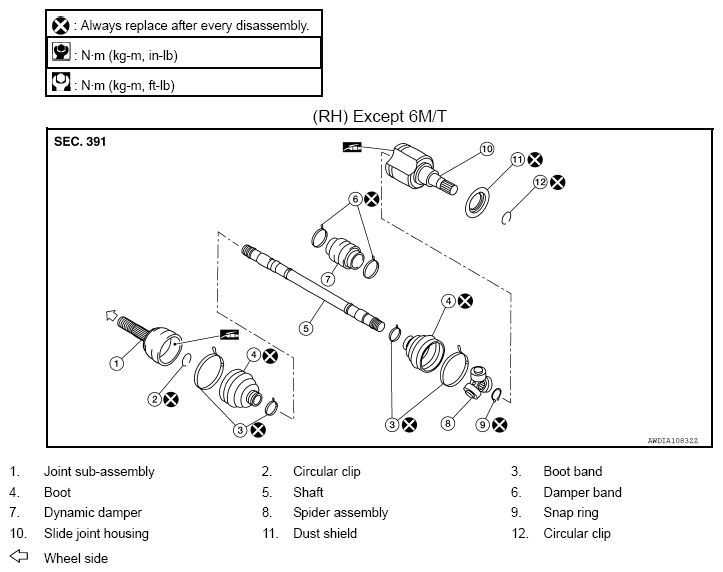

Fig 3: Exploded View Of Front Drive Shaft Boot (RH) Except 6M/T
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
