Power Control System (IPDM/Er) (Without I-Key)
›
Wiring Diagram
›
IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Connector End Views
Connector End Views

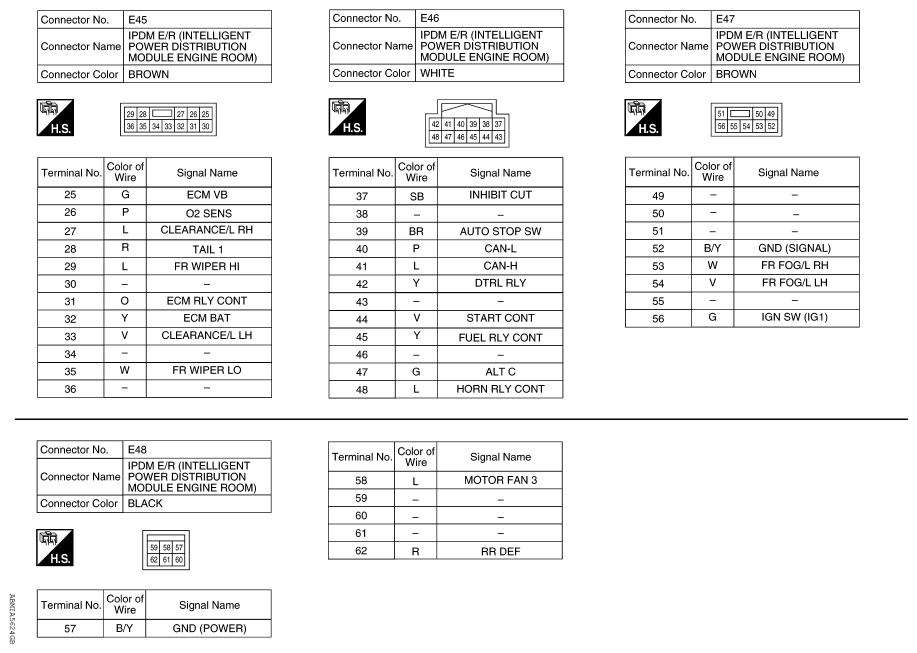

Fig 1: IPDM E/R Connector End Views (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

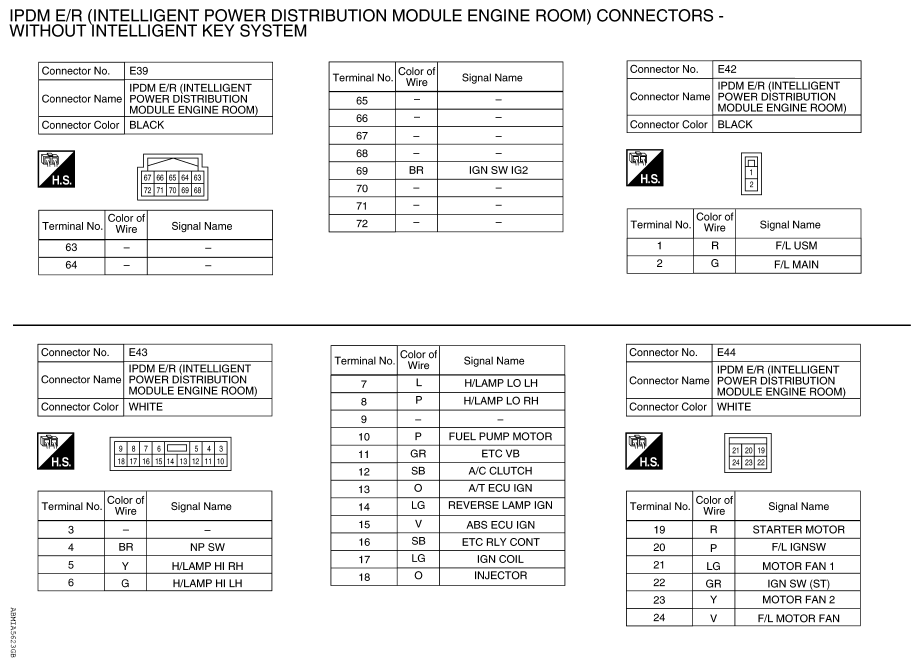

Fig 2: IPDM E/R Connector End Views (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
