Oil Pump: Notes

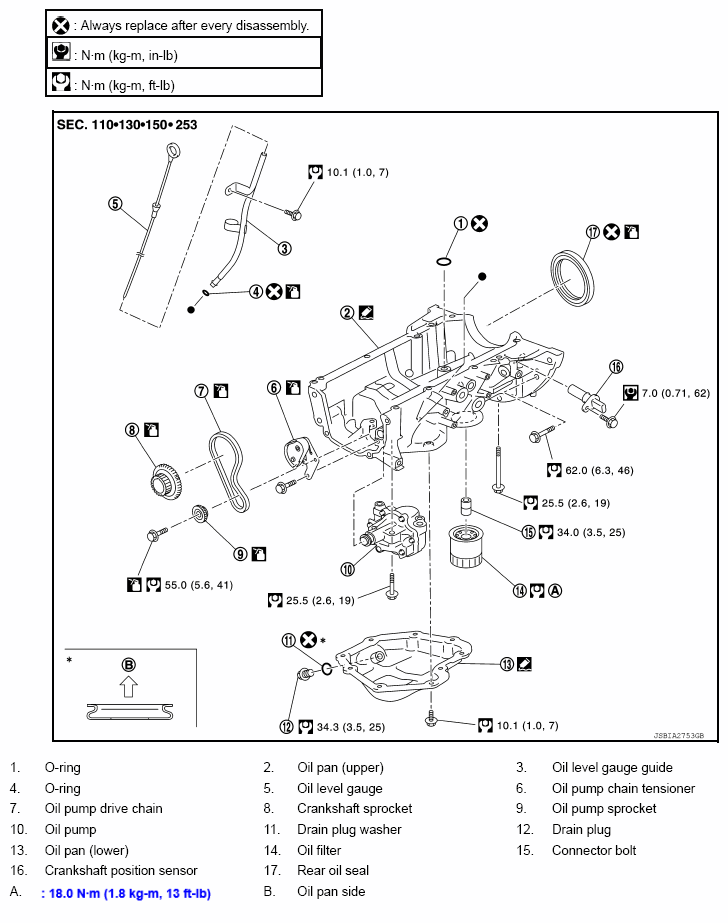

Fig 1: Disassembled View Of Oil Pump With Torque Specifications
G09458195Courtesy of NISSAN NORTH AMERICA, INC.
