Exploded View

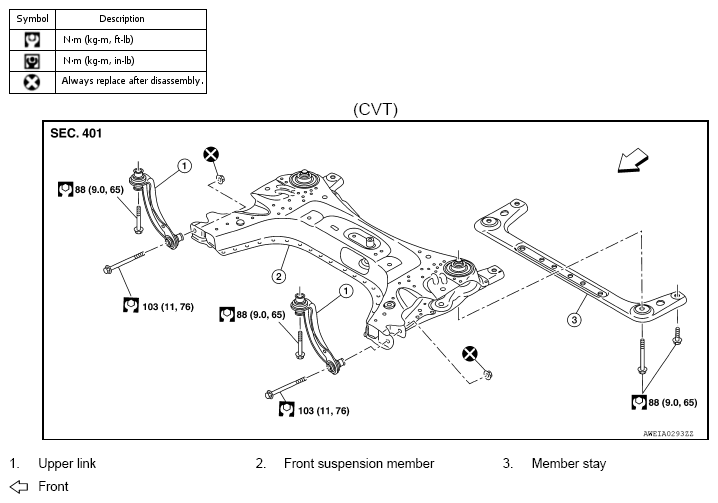

Fig 1: Exploded View Of Front Suspension Member (CVT) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

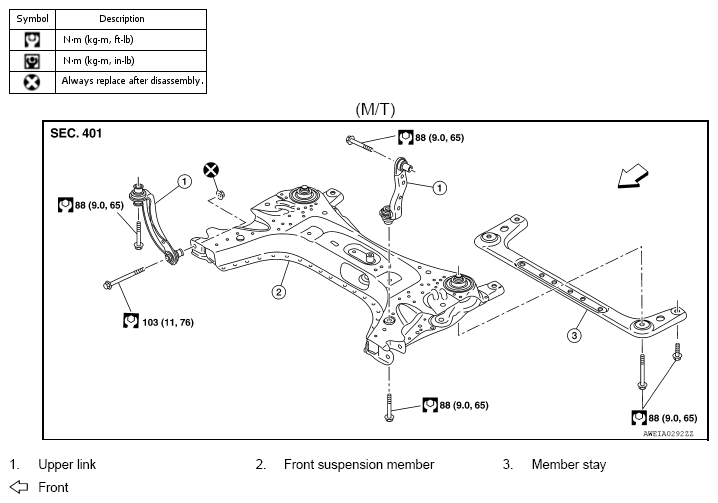

Fig 2: Exploded View Of Front Suspension Member (M/T) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
