Key Interlock Cable
›
Exploded View
Exploded View

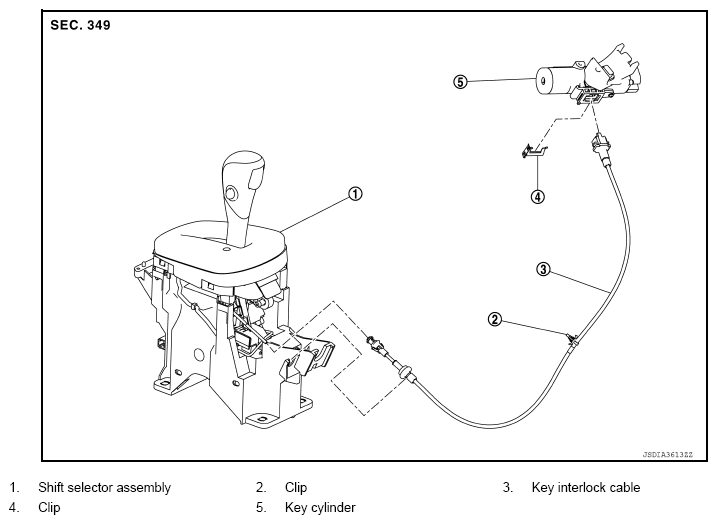

Fig 1: Exploded View Of Key Interlock Cable
Courtesy of NISSAN NORTH AMERICA, INC.
