FixVault
Home
›
Nissan-Datsun
›
2014
›
Sentra SL
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission (CVT)
›
Removal And Installation
›
Output Speed Sensor
›
Exploded View
Exploded View

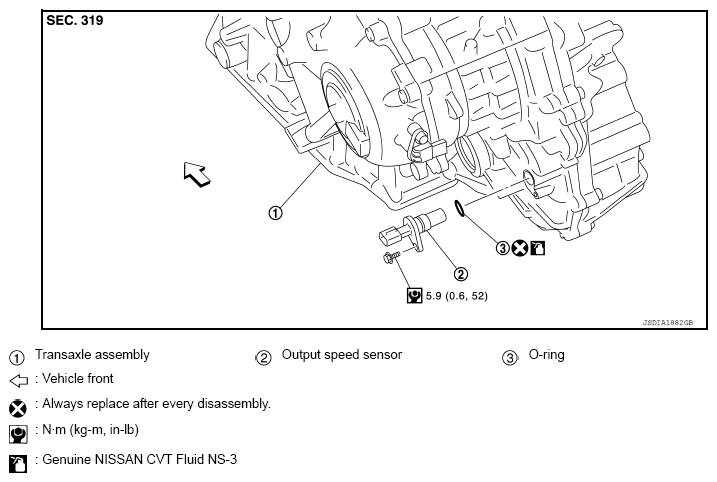

Fig 1: Exploded View Of Output Speed Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
