Symptom Table

The diagnosis item number indicates the order of check. Start checking in the order from 1.

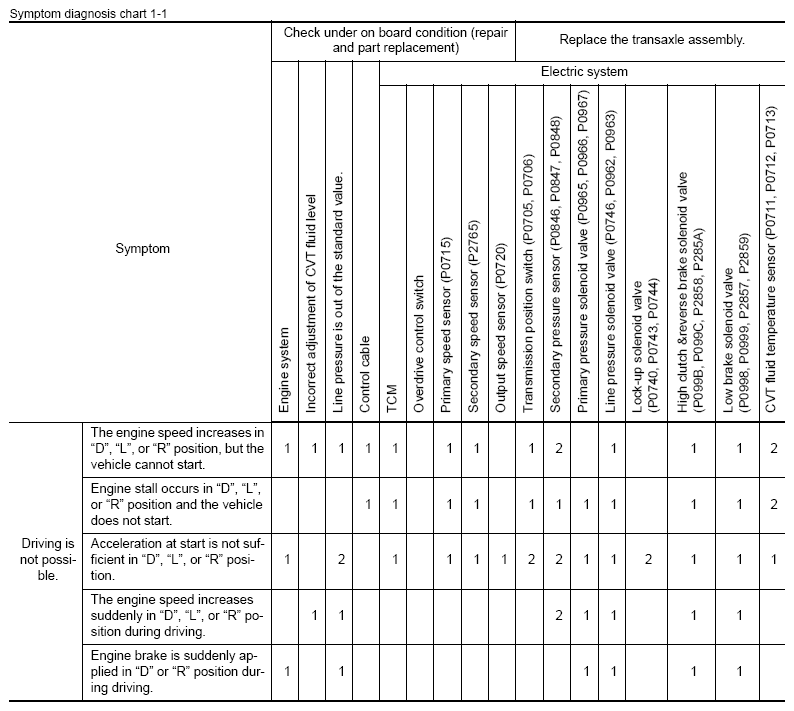

Fig 1: CVT Control System Symptom Chart (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

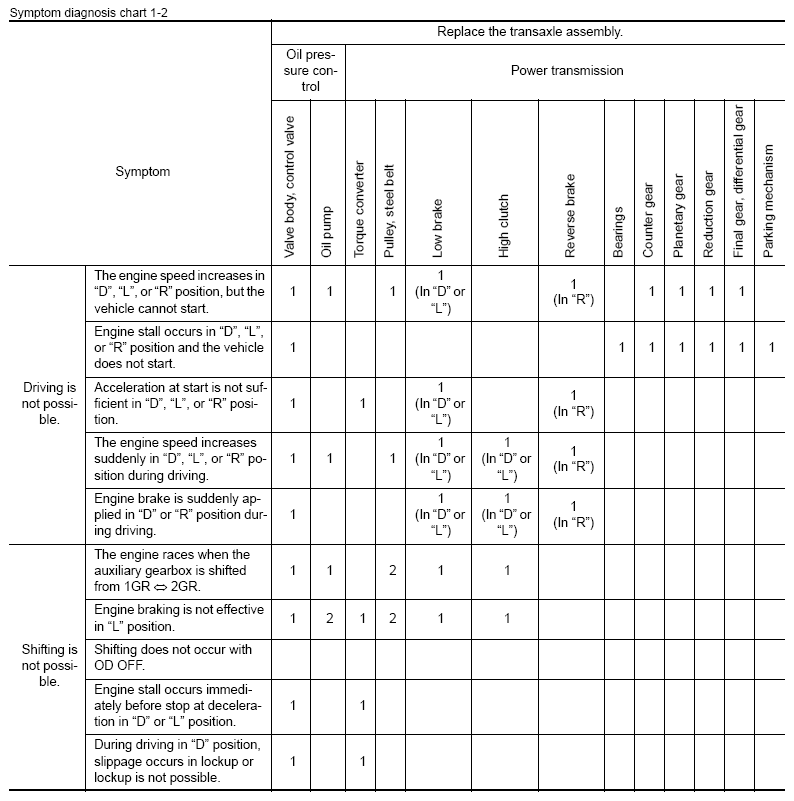

Fig 2: CVT Control System Symptom Chart (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

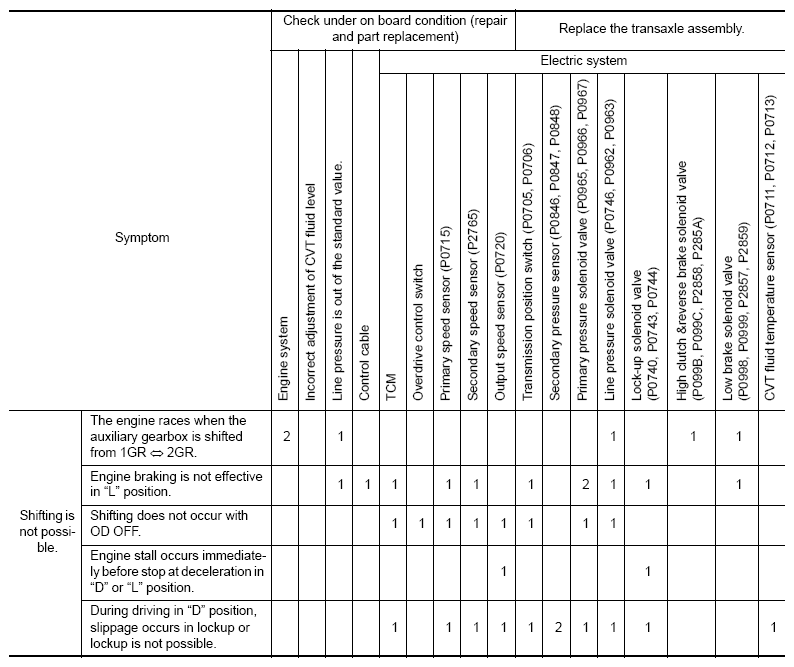

Fig 3: CVT Control System Symptom Chart (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

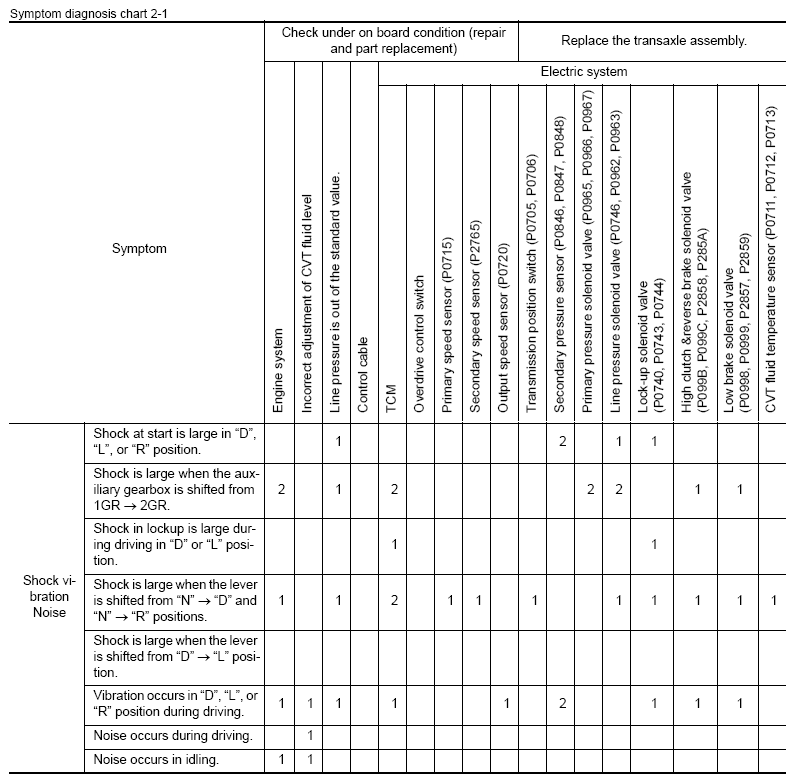

Fig 4: CVT Control System Symptom Chart (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

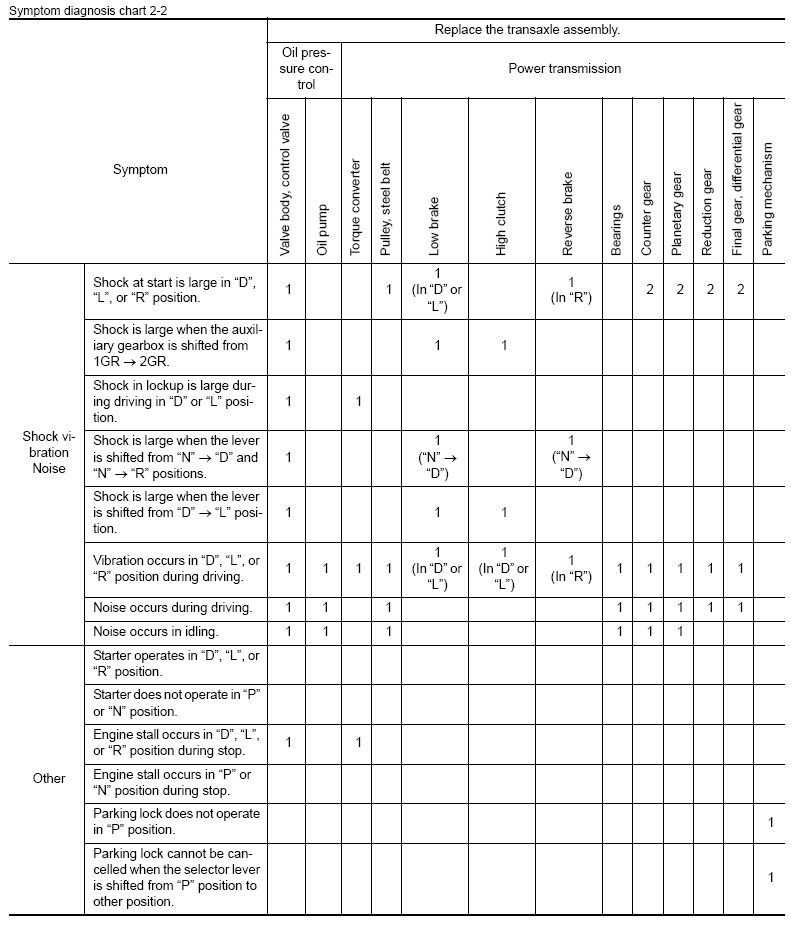

Fig 5: CVT Control System Symptom Chart (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

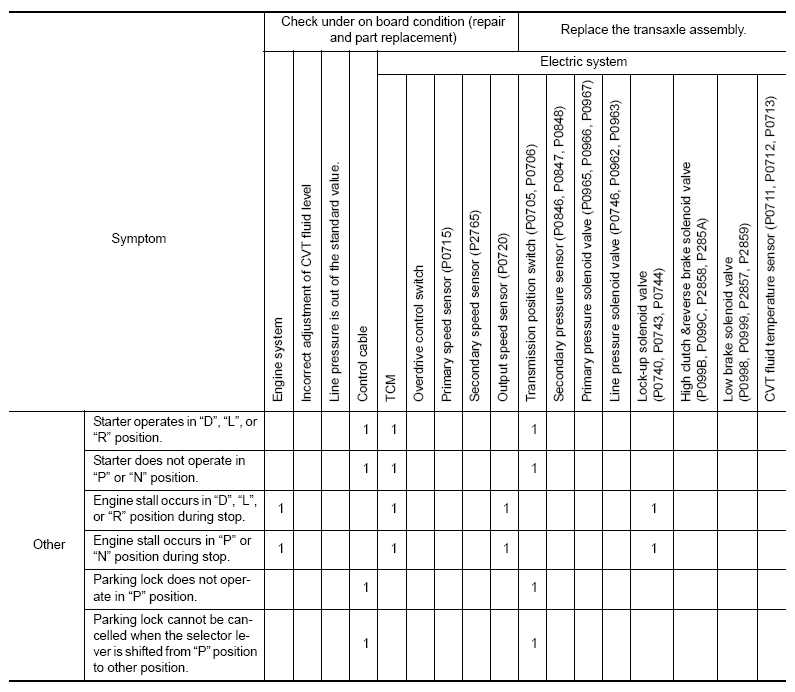

Fig 6: CVT Control System Symptom Chart (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
