Sentra SL
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission (CVT)
›
System Description
›
System
›
CVT Control System
›
CVT CONTROL SYSTEM: System Diagram
CVT CONTROL SYSTEM: System Diagram

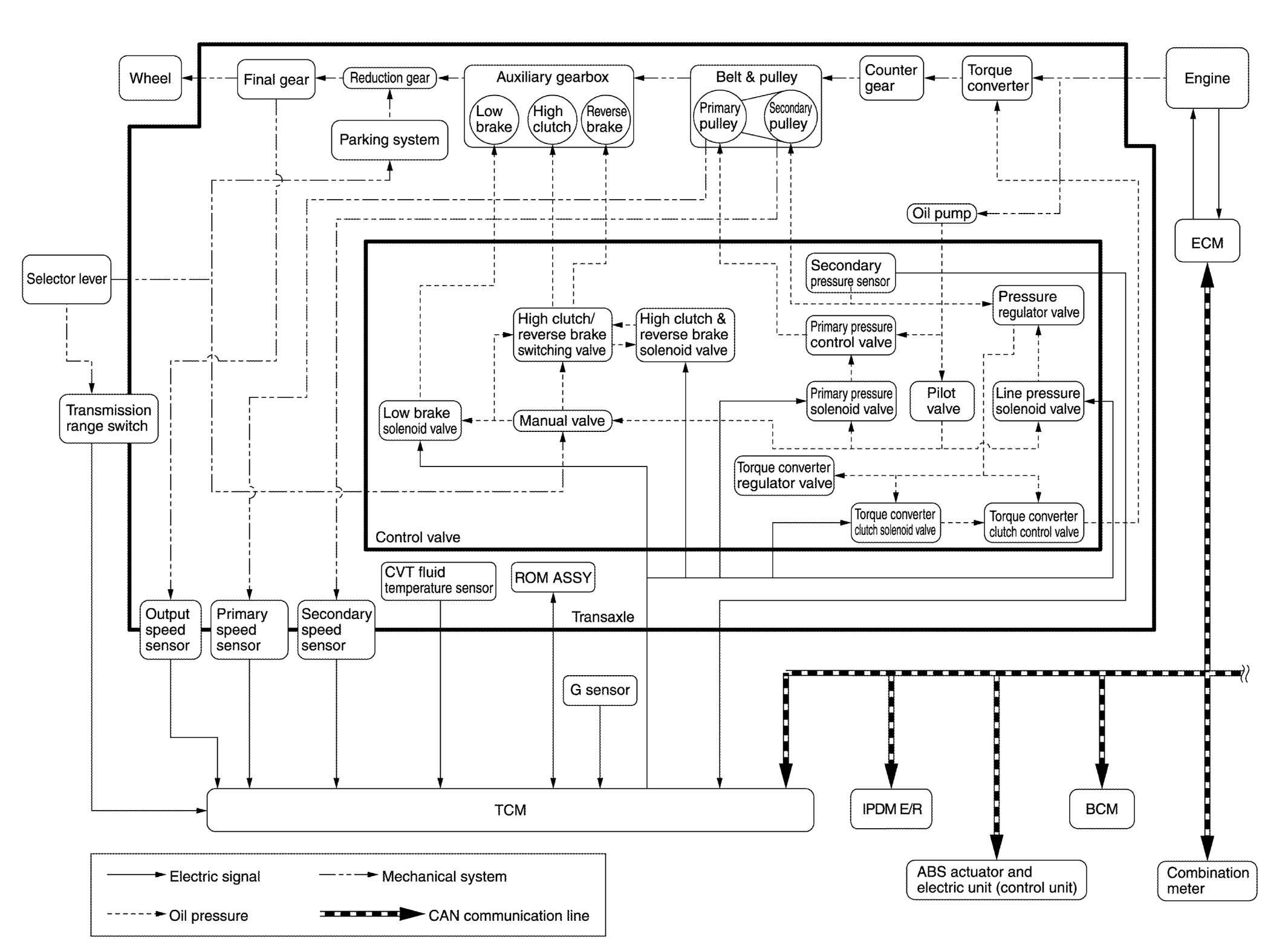

Fig 1: CVT Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
