LOCK-UP CONTROL: System Description
›
System Diagram
System Diagram

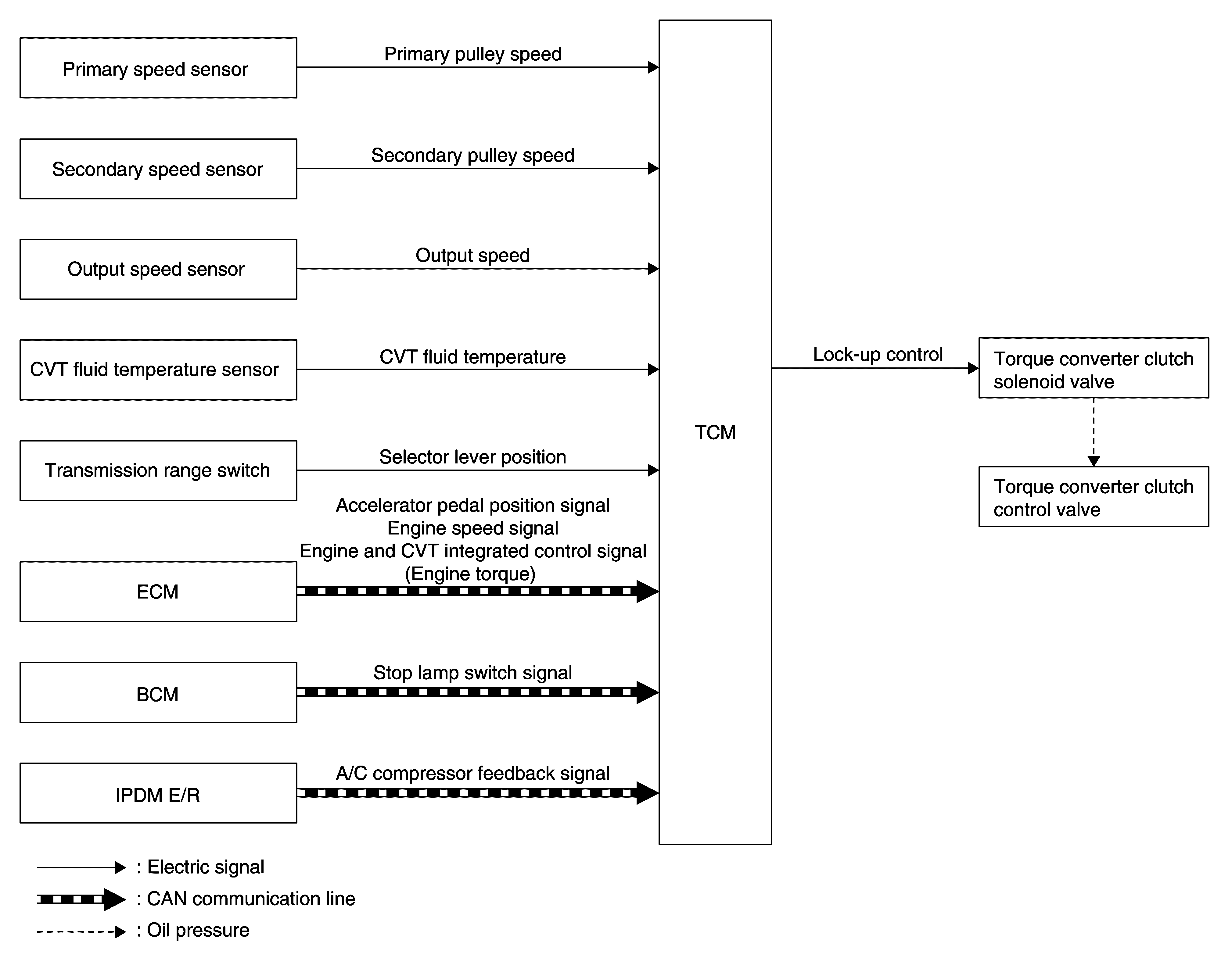

Fig 1: Lock-Up Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
