Exploded View

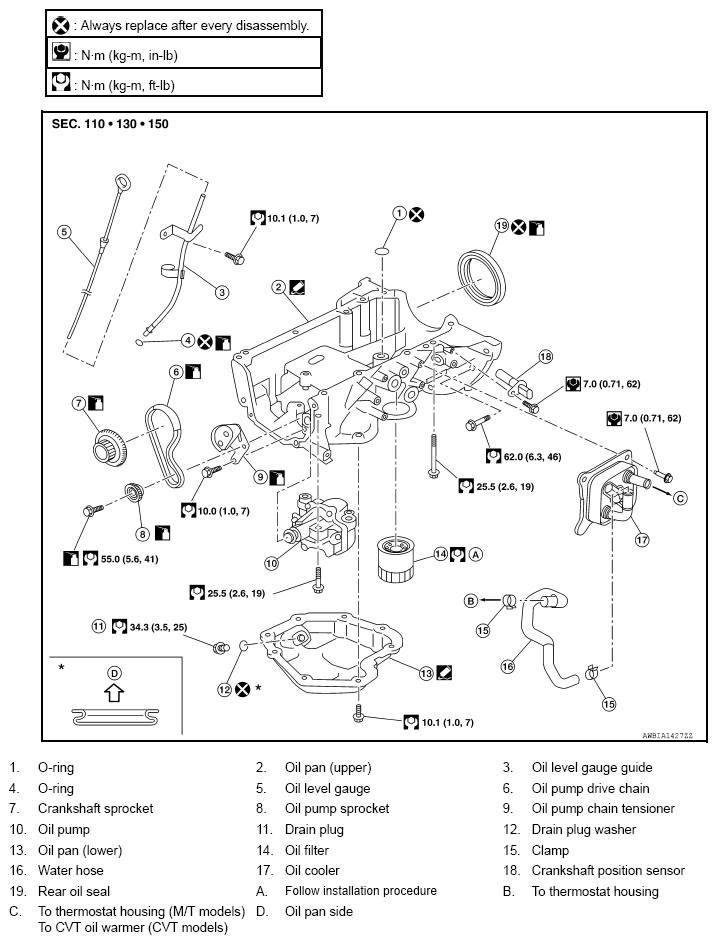

Fig 1: Exploded View Of Oil Pan With Torque Specifications
G09457965Courtesy of NISSAN NORTH AMERICA, INC.
