Removal and Installation: Removal

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "DESCRIPTION ".

Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to "REMOVAL AND INSTALLATION (BATTERY) ".
Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
Remove screws (A) and remove the BCM (1) from the steering member and position aside.

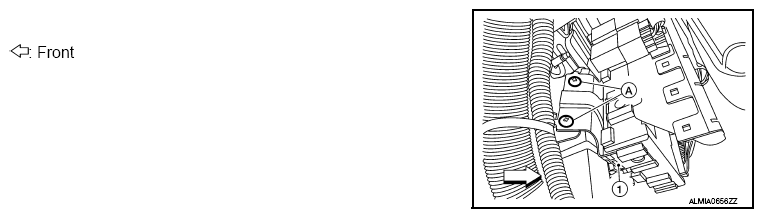

Fig 1: Identifying BCM And Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connectors from the BCM.
Remove relays from relay bracket.
Remove relay bracket from BCM to transfer to new BCM.
