Removal and Installation: Removal

  1. Remove the glove box. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the harness connector (A) from remote keyless entry receiver (1).
  3. Remove screw (B) and remove remote keyless entry receiver.

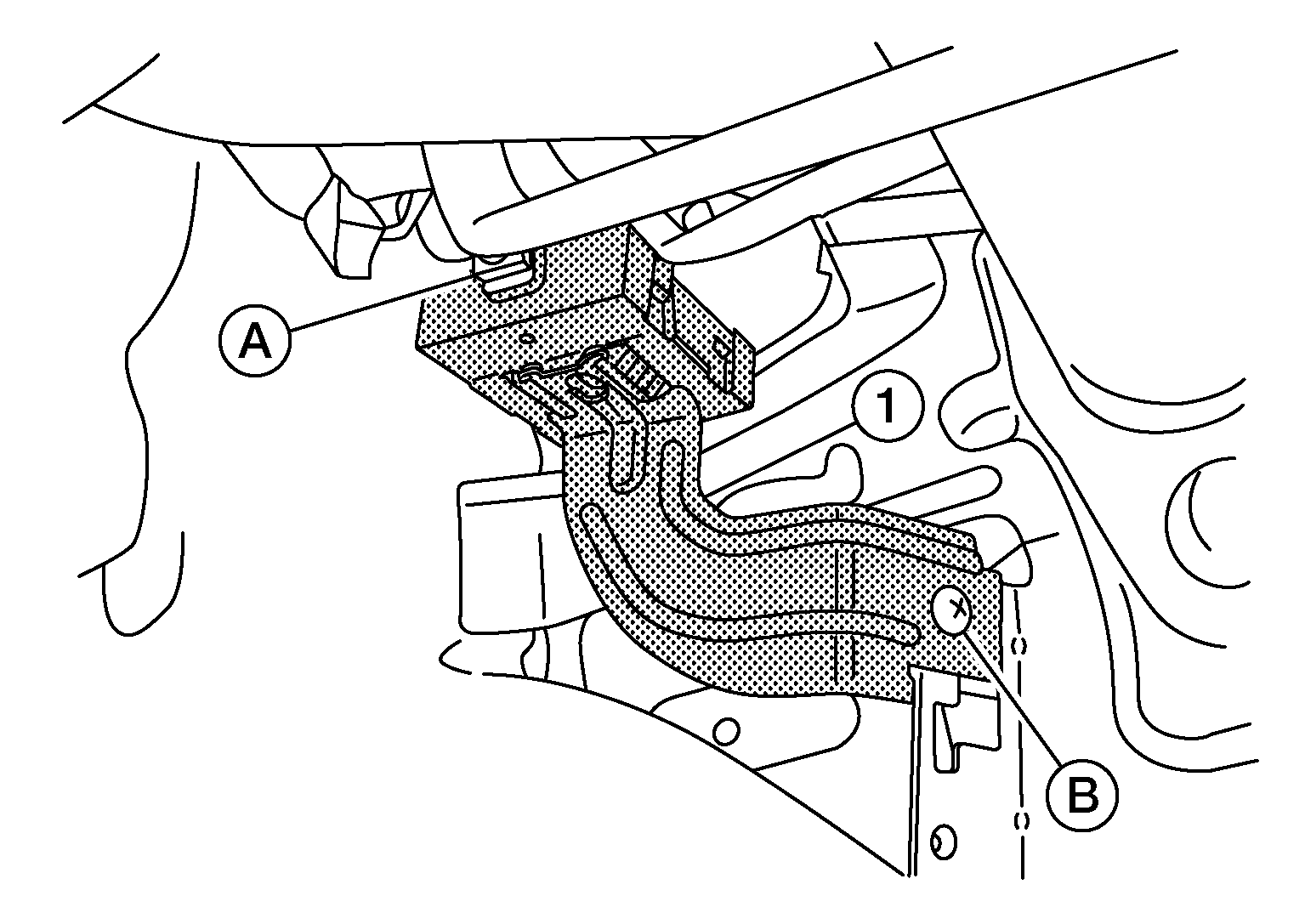

    Fig 1: Identifying Harness Connector From Remote Keyless Entry Receiver With Screws
    G09604466Courtesy of NISSAN NORTH AMERICA, INC.
