Connector End Views

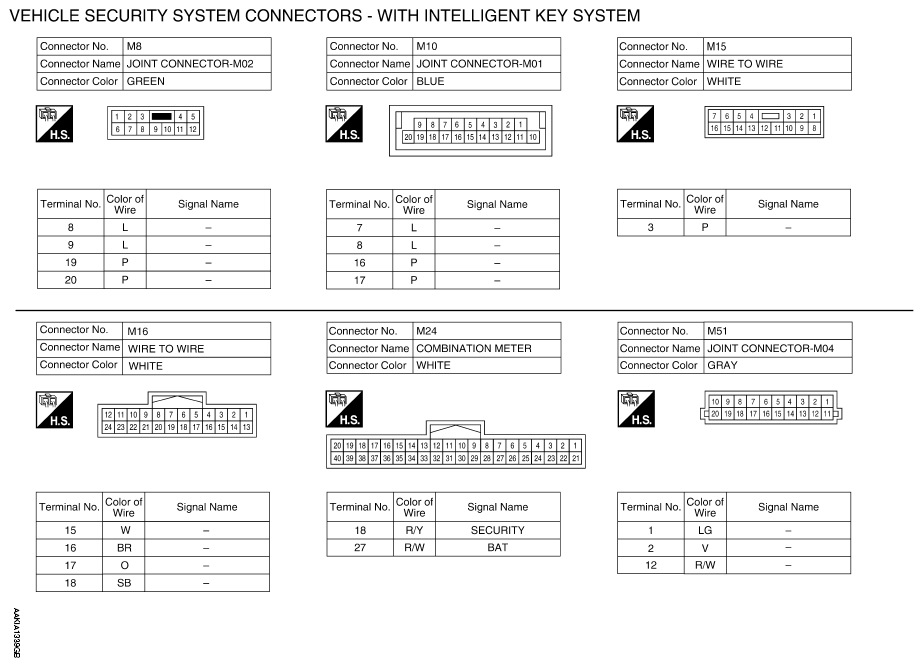

Fig 1: Vehicle Security System Connector End View - With Intelligent Key System (1 Of 8)
G09604453Courtesy of NISSAN NORTH AMERICA, INC.

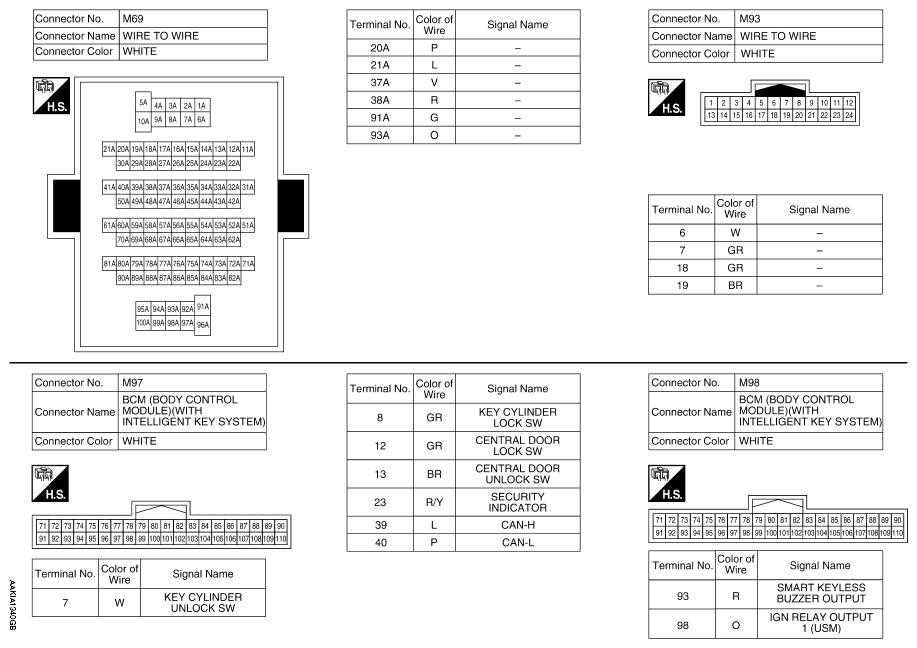

Fig 2: Vehicle Security System Connector End View - With Intelligent Key System (2 Of 8)
G09604454Courtesy of NISSAN NORTH AMERICA, INC.

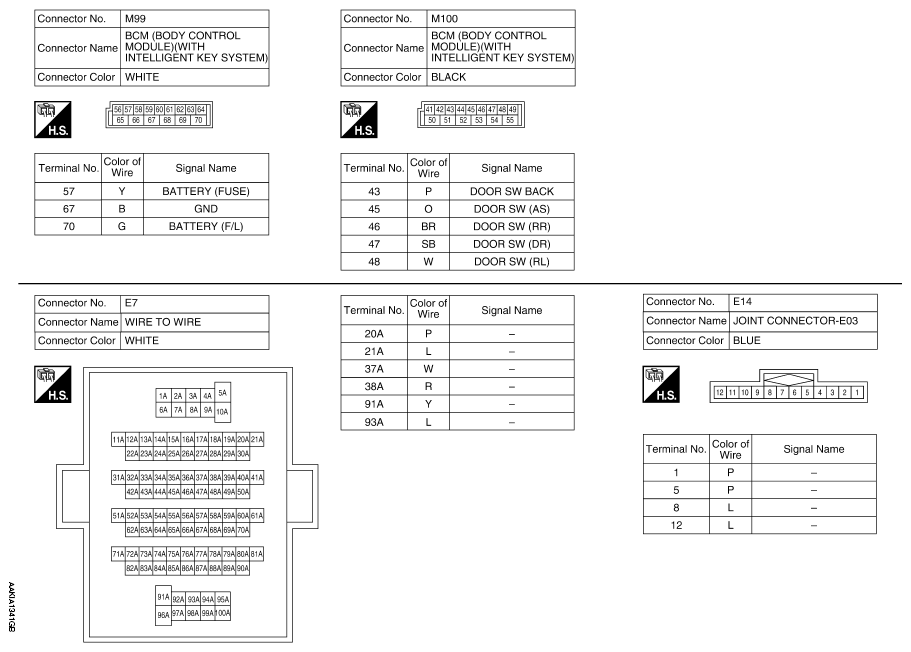

Fig 3: Vehicle Security System Connector End View - With Intelligent Key System (3 Of 8)
G09604455Courtesy of NISSAN NORTH AMERICA, INC.

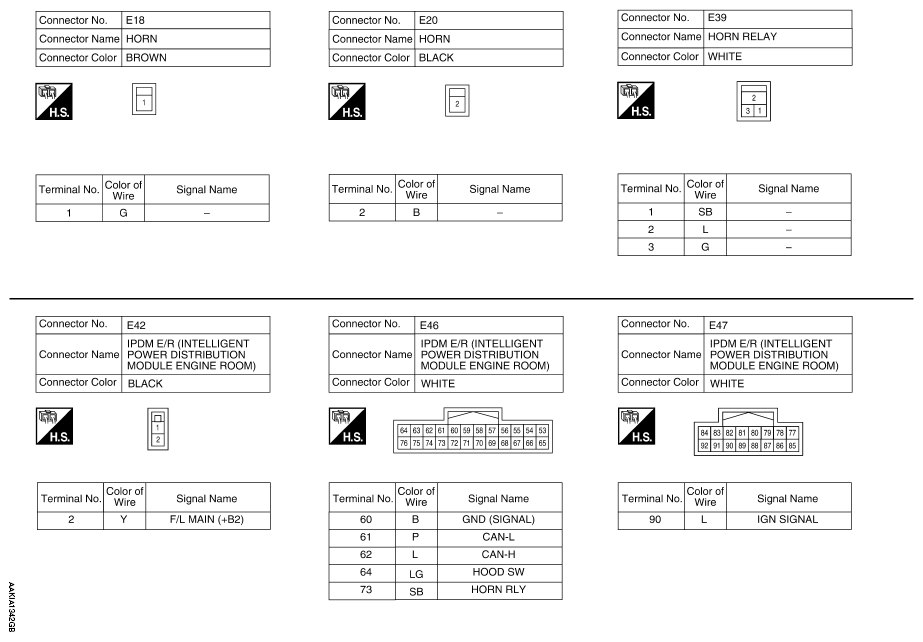

Fig 4: Vehicle Security System Connector End View - With Intelligent Key System (4 Of 8)
G09604456Courtesy of NISSAN NORTH AMERICA, INC.

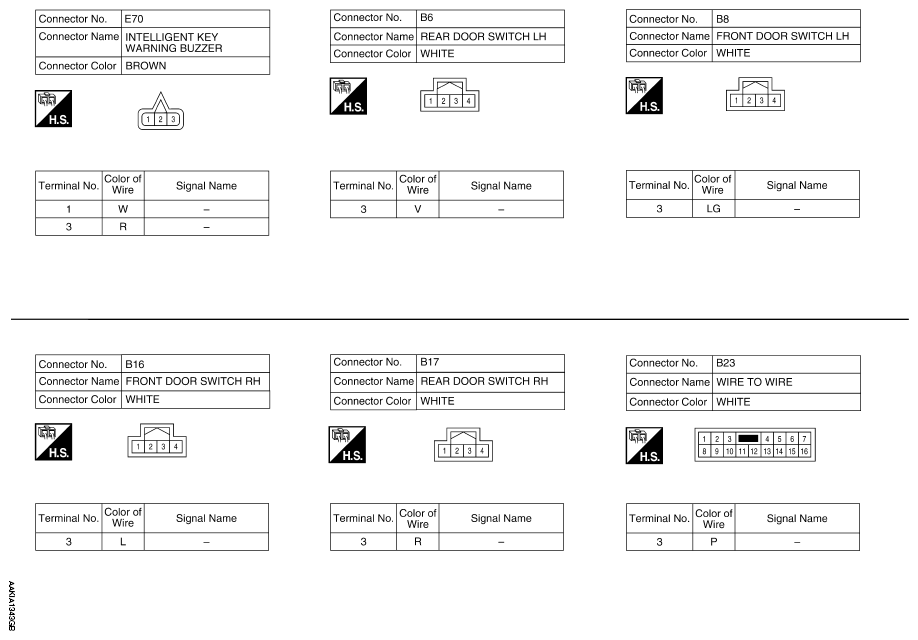

Fig 5: Vehicle Security System Connector End View - With Intelligent Key System (5 Of 8)
G09604457Courtesy of NISSAN NORTH AMERICA, INC.

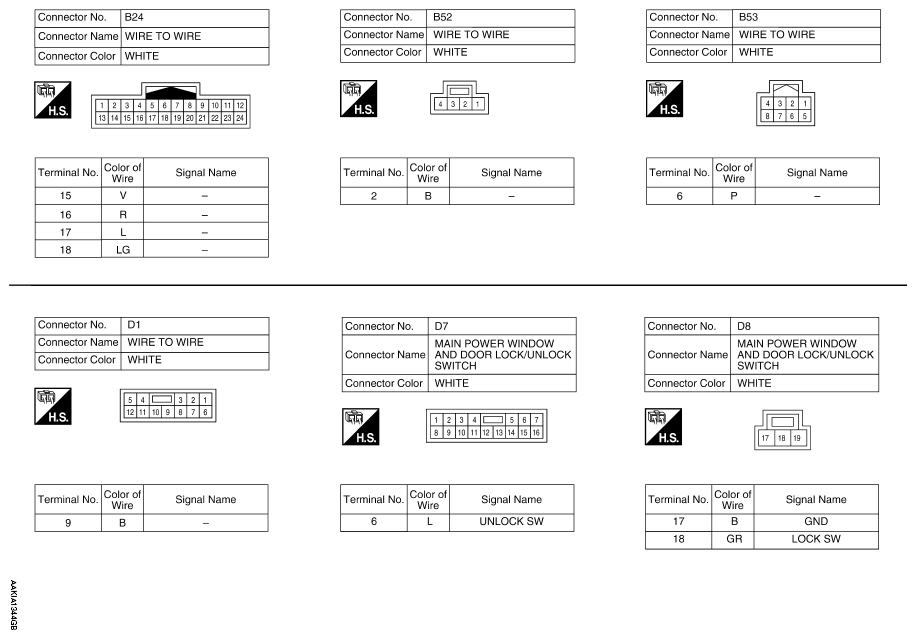

Fig 6: Vehicle Security System Connector End View - With Intelligent Key System (6 Of 8)
G09604458Courtesy of NISSAN NORTH AMERICA, INC.

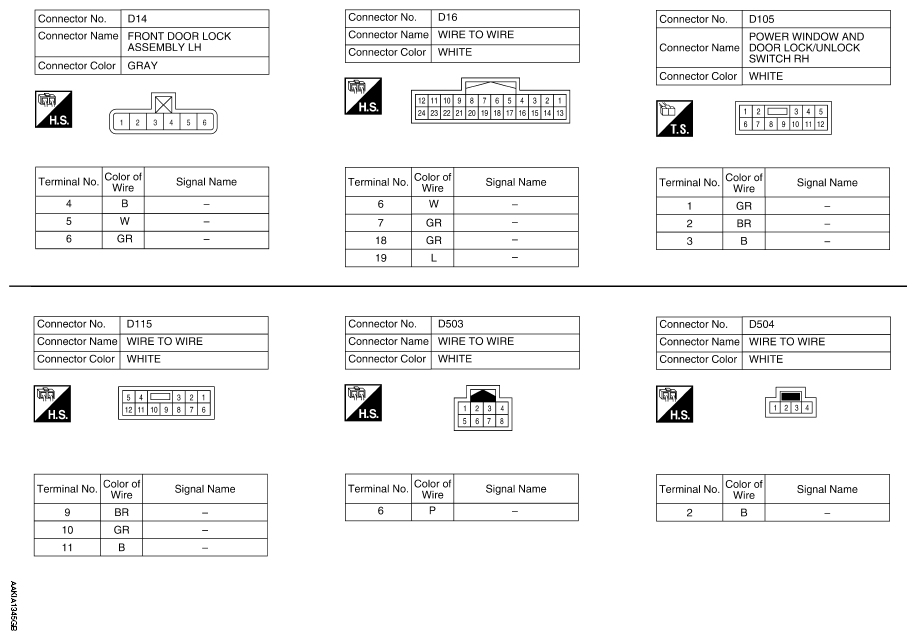

Fig 7: Vehicle Security System Connector End View - With Intelligent Key System (7 Of 8)
G09604459Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Vehicle Security System Connector End View - With Intelligent Key System (8 Of 8)
G09604460Courtesy of NISSAN NORTH AMERICA, INC.
