Connector End View

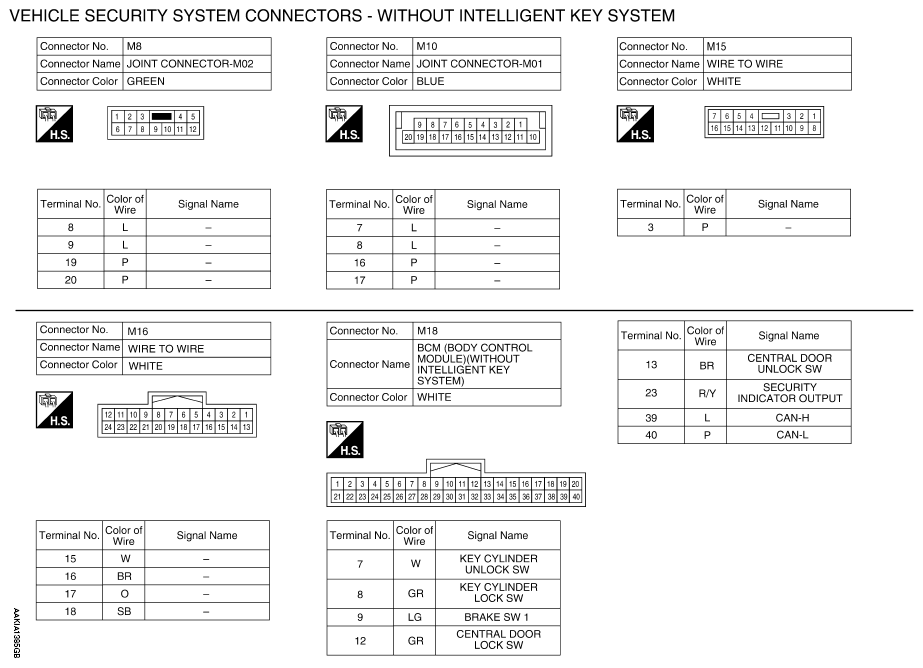

Fig 1: Vehicle Security System Connector End View - Without Intelligent Key System (1 Of 7)
G09604483Courtesy of NISSAN NORTH AMERICA, INC.

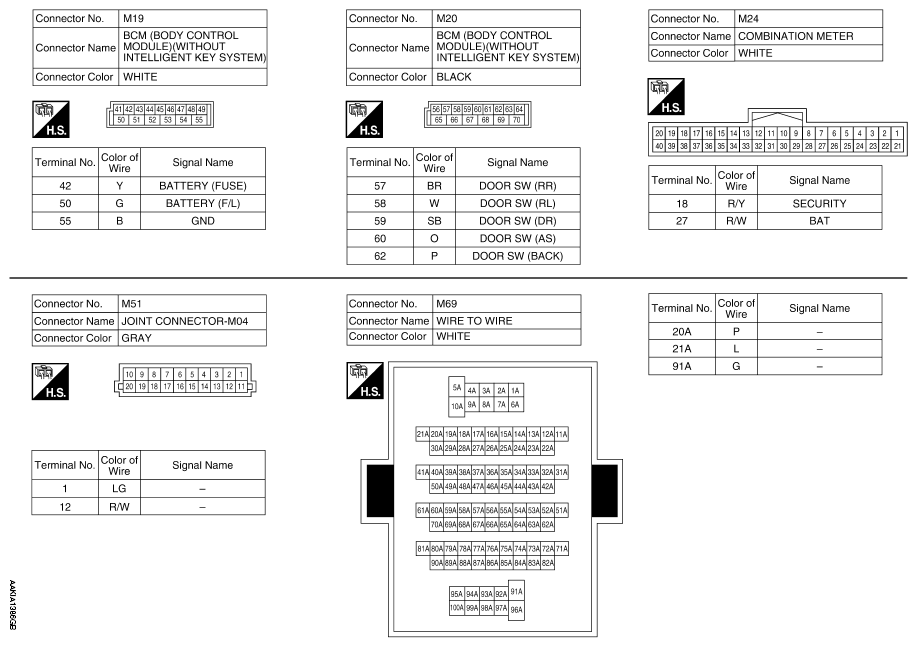

Fig 2: Vehicle Security System Connector End View - Without Intelligent Key System (2 Of 7)
G09604484Courtesy of NISSAN NORTH AMERICA, INC.

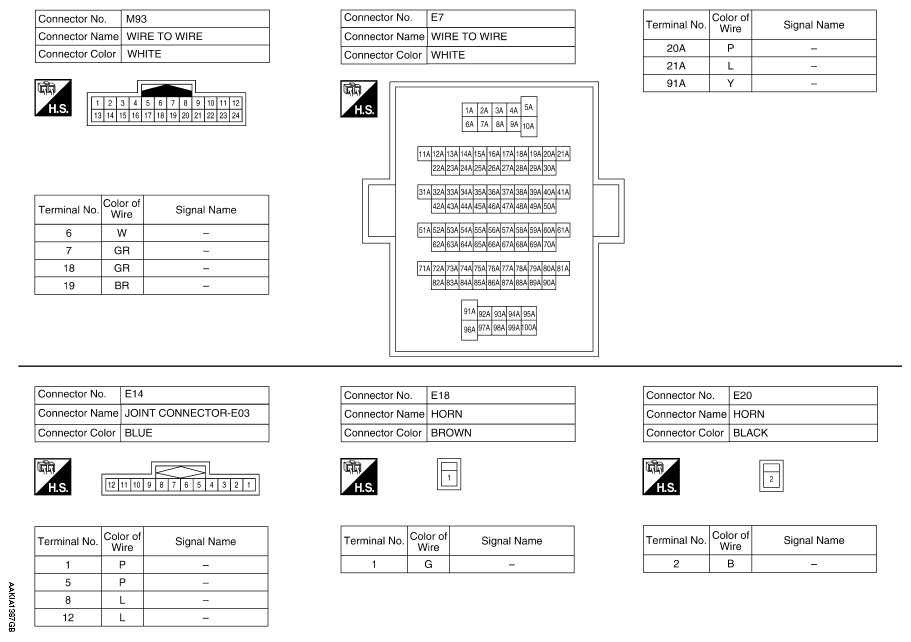

Fig 3: Vehicle Security System Connector End View - Without Intelligent Key System (3 Of 7)
G09604485Courtesy of NISSAN NORTH AMERICA, INC.

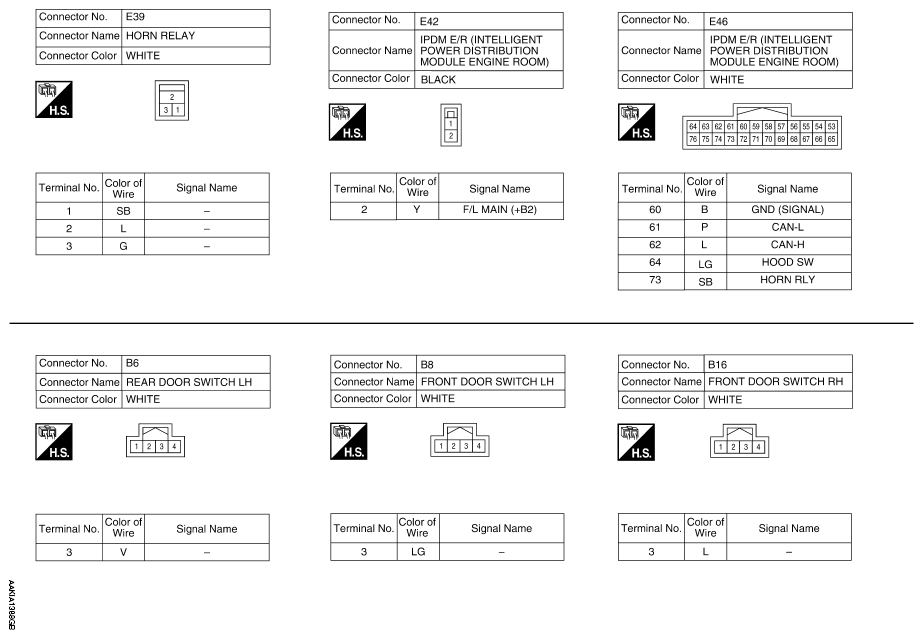

Fig 4: Vehicle Security System Connector End View - Without Intelligent Key System (4 Of 7)
G09604486Courtesy of NISSAN NORTH AMERICA, INC.

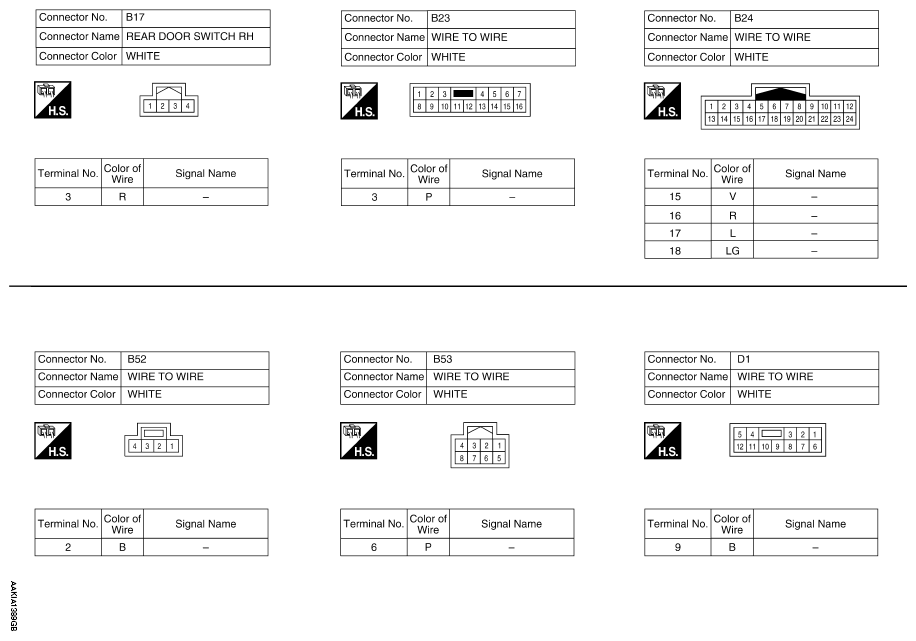

Fig 5: Vehicle Security System Connector End View - Without Intelligent Key System (5 Of 7)
G09604487Courtesy of NISSAN NORTH AMERICA, INC.

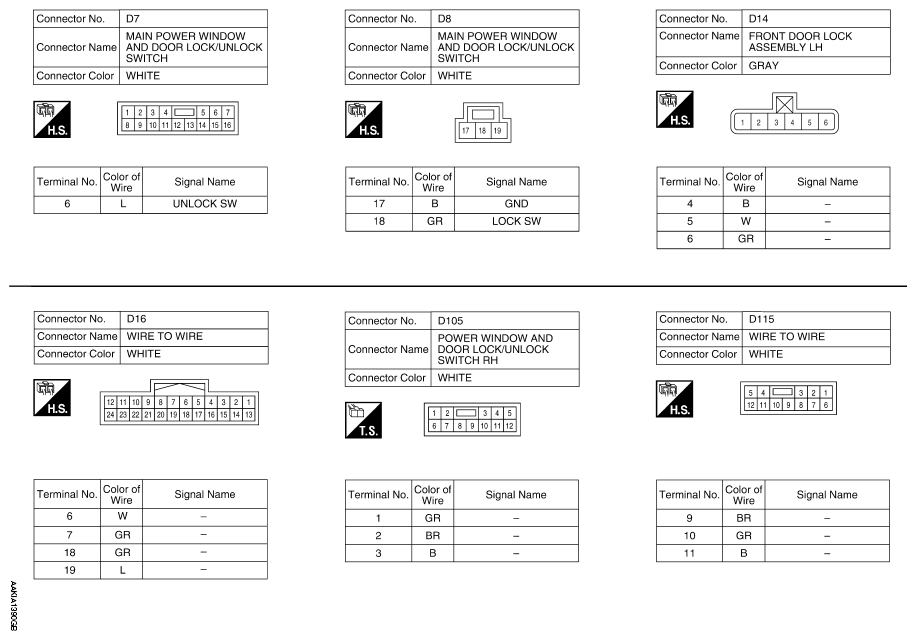

Fig 6: Vehicle Security System Connector End View - Without Intelligent Key System (6 Of 7)
G09604488Courtesy of NISSAN NORTH AMERICA, INC.

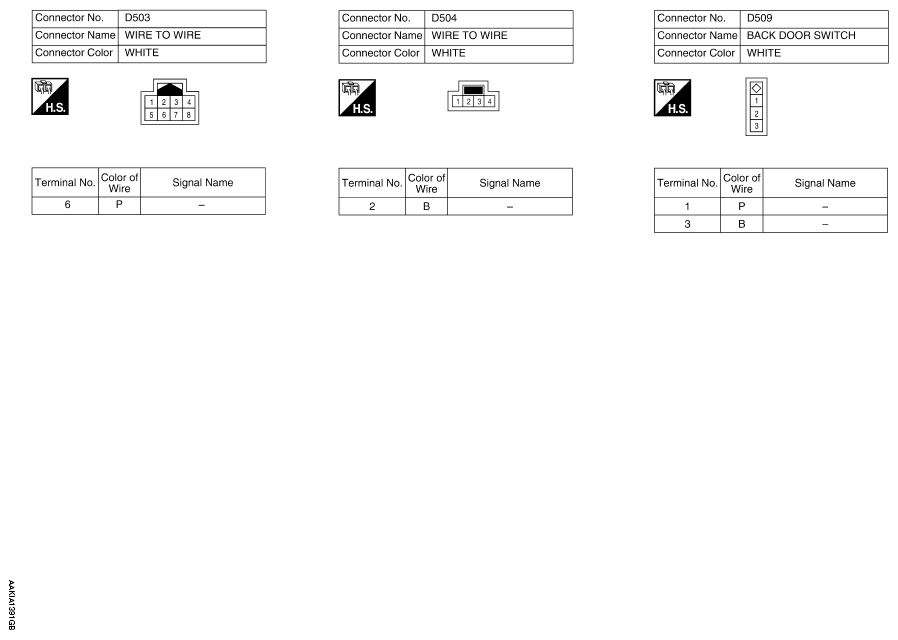

Fig 7: Vehicle Security System Connector End View - Without Intelligent Key System (7 Of 7)
G09604489Courtesy of NISSAN NORTH AMERICA, INC.
