IPDM E/R Relays

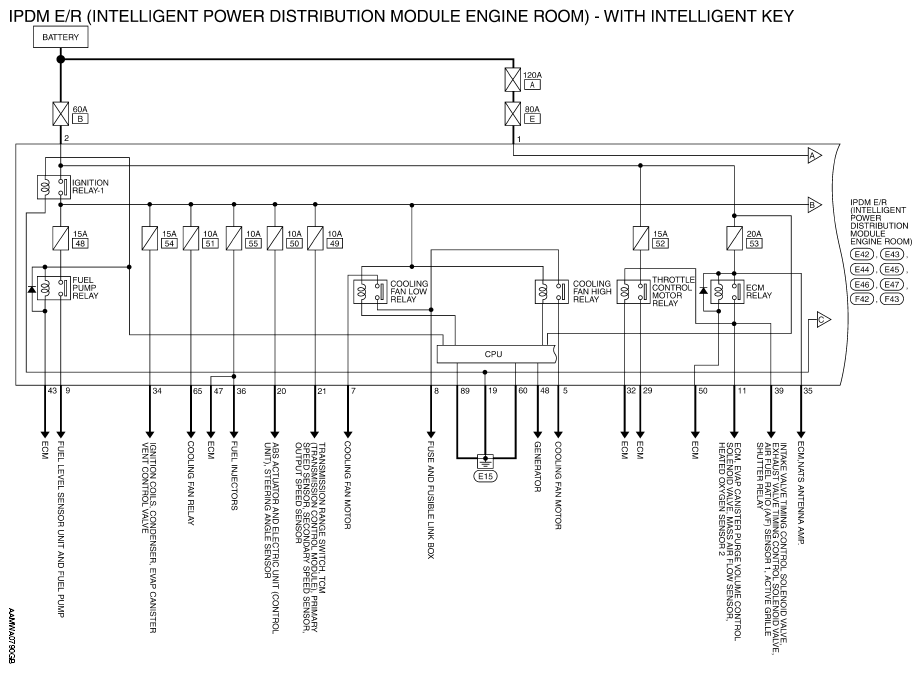

IPDM E/R (WITH I-KEY) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Ignition Relay - 1 |
| Fuel Pump Relay |
| Cooling Fan Low Relay |
| Cooling Fan High Relay |
| Throttle Control Motor Relay |
| ECM Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|

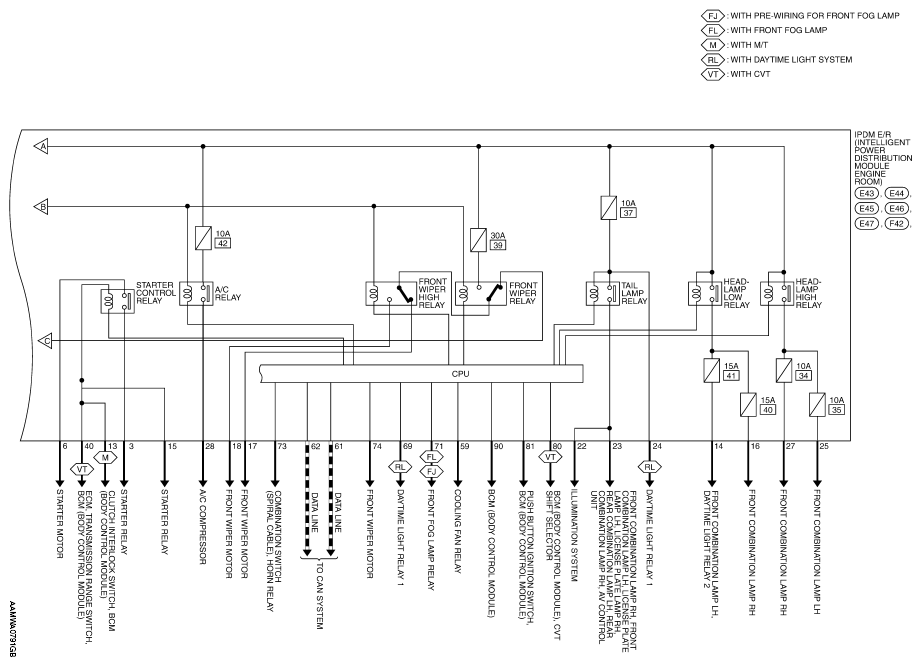

IPDM E/R (WITH I-KEY) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Starter Control Relay |
| A/C Relay |
| Front Wiper High Relay |
| Front Wiper Relay |
| Tail Lamp Relay |
| Headlamp Low Relay |
| Headlamp High Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|
