Power Control System (IPDM/Er) (With I-Key)
›
System Description
›
System
›
Relay Control System
›
RELAY CONTROL SYSTEM: System Description
›
System Diagram
System Diagram

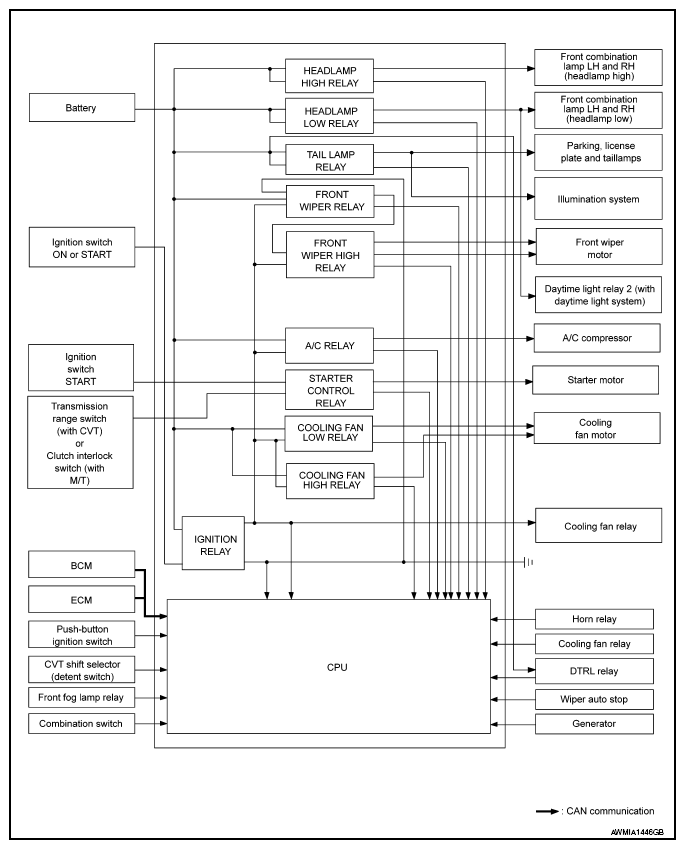

Fig 1: Relay Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
