Power Control System (IPDM/Er) (With I-Key)
›
Wiring Diagram
›
IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Connector End Views
Connector End Views

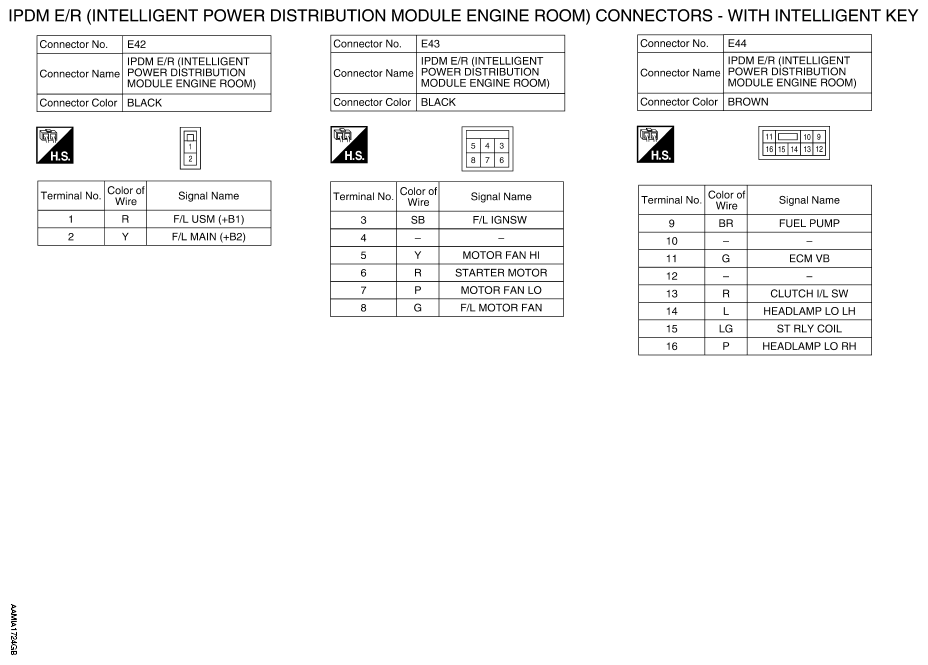

Fig 1: Intelligent Power Distribution Module Engine Room Connector End View (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

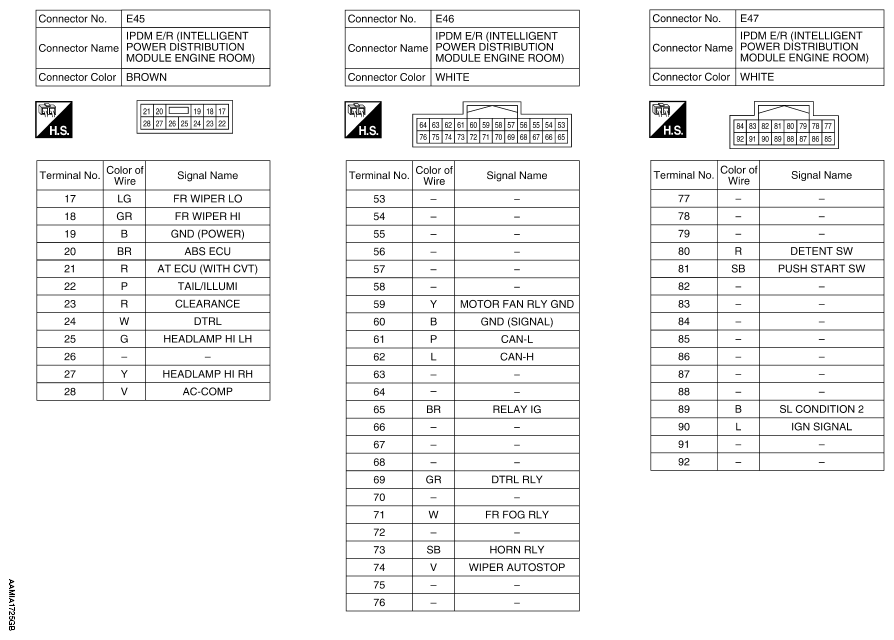

Fig 2: Intelligent Power Distribution Module Engine Room Connector End View (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

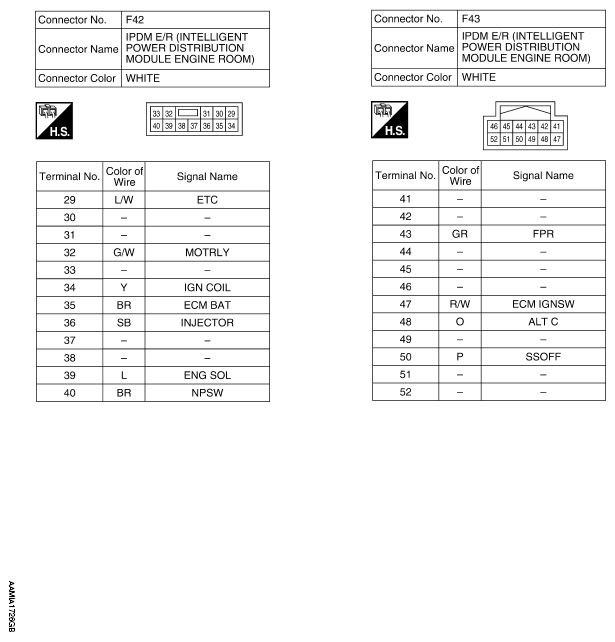

Fig 3: Intelligent Power Distribution Module Engine Room Connector End View (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
