COMMON ITEM: CONSULT Function (BCM - COMMON ITEM)
›
System Application
System Application
BCM can perform the following functions.

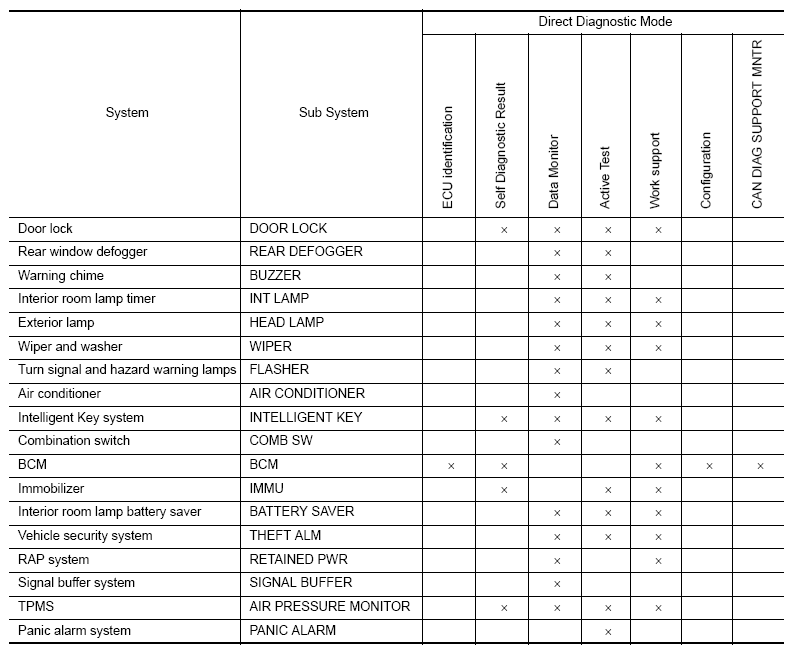

Fig 1: BCM System Application
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
