FixVault
Home
›
Nissan-Datsun
›
2014
›
Versa Note S Plus
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Oil Cooler
›
Exploded View
›
Notes
Exploded View: Notes

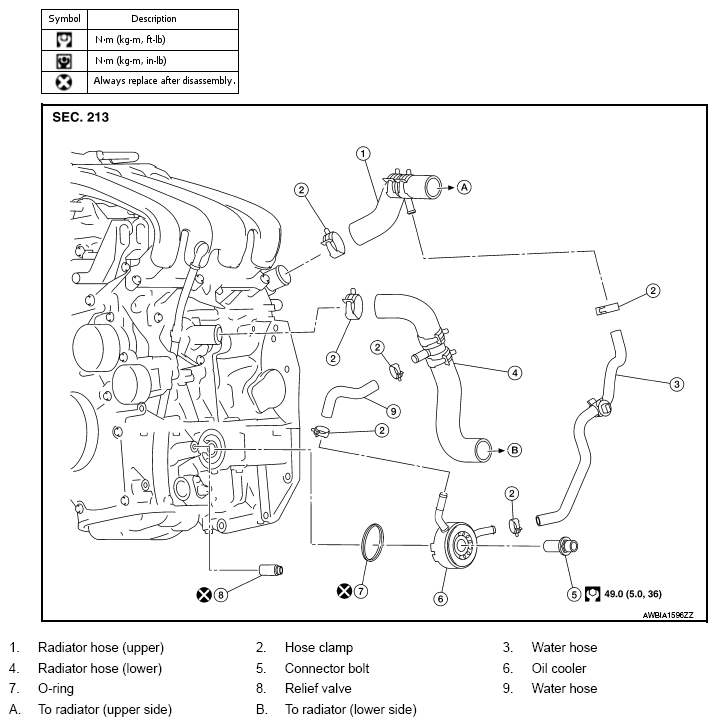

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
