Transverse Link
›
Exploded View
Exploded View

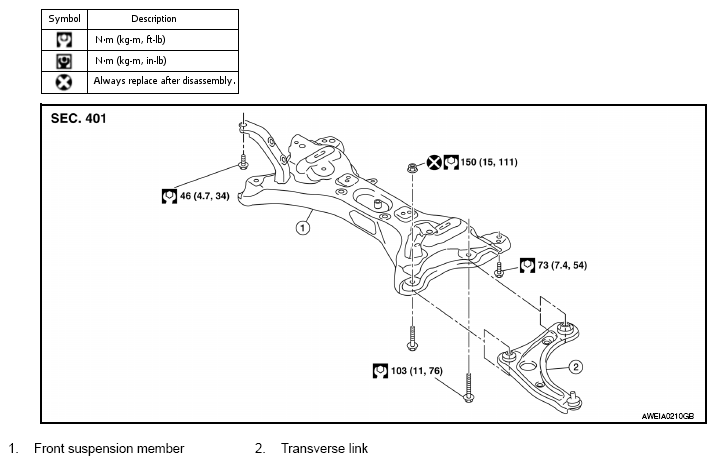

Fig 1: Exploded View Of Transverse Link With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
