BCM (Body Control Module) (With Intelligent Key System) Connector End View (M98)
BCM (Body Control Module) (With Intelligent Key System) Connector End View (M98)

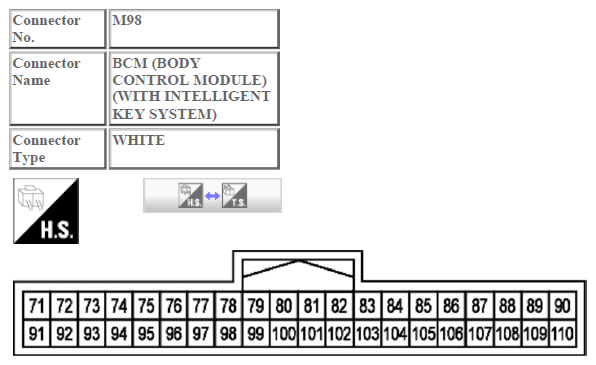

Fig 1: BCM (Body Control Module) (With Intelligent Key System) Connector End View (M98)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
