Versa Note S, Automatic CVT Trans
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Removal And Installation
›
Oil Pump
›
Exploded View
Exploded View

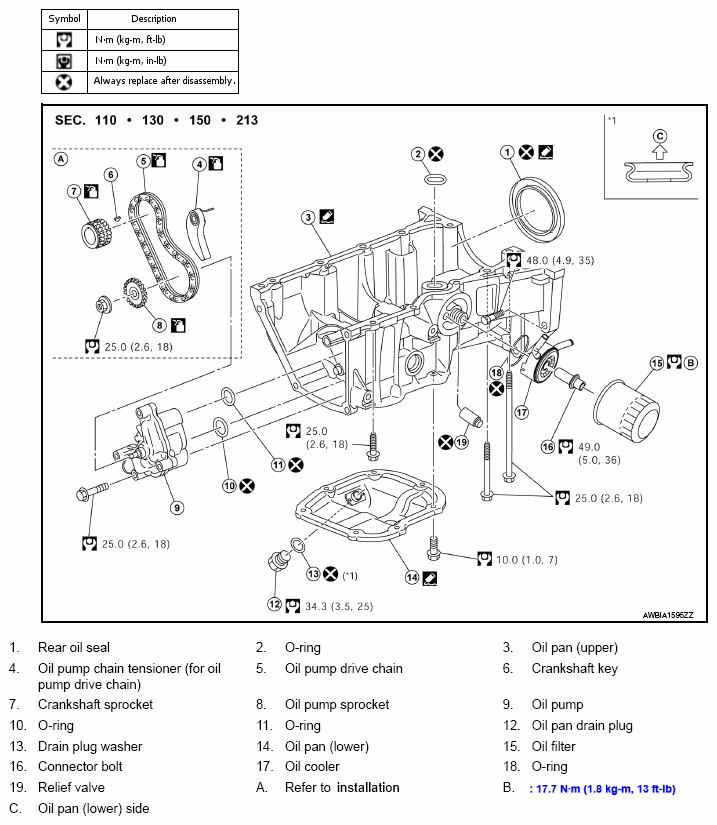

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
