Removal And Installation
›
Abs Actuator And Electric Unit (Control Unit)
›
Exploded View
Exploded View

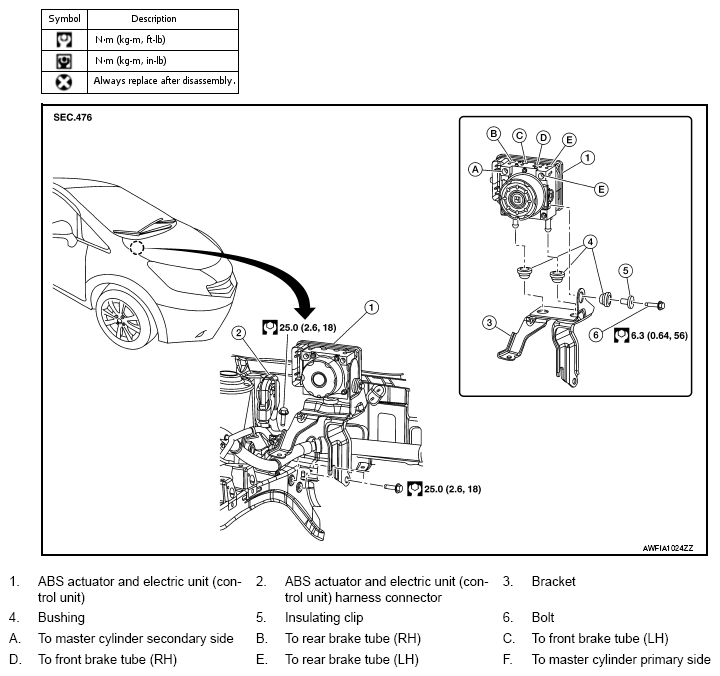

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
