Nissan-Datsun
›
2014
›
Versa Note S, Standard Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Power Control System (Power Distribution System)
›
Wiring Diagram
›
Power Distribution System
›
Connector End View
Connector End View

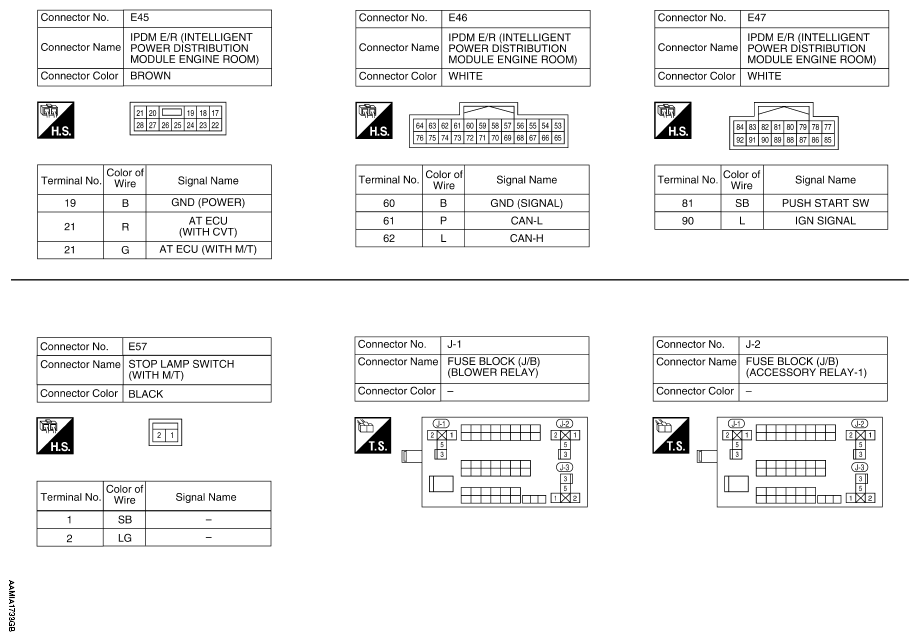

Fig 1: Power Distribution System Connector End View (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

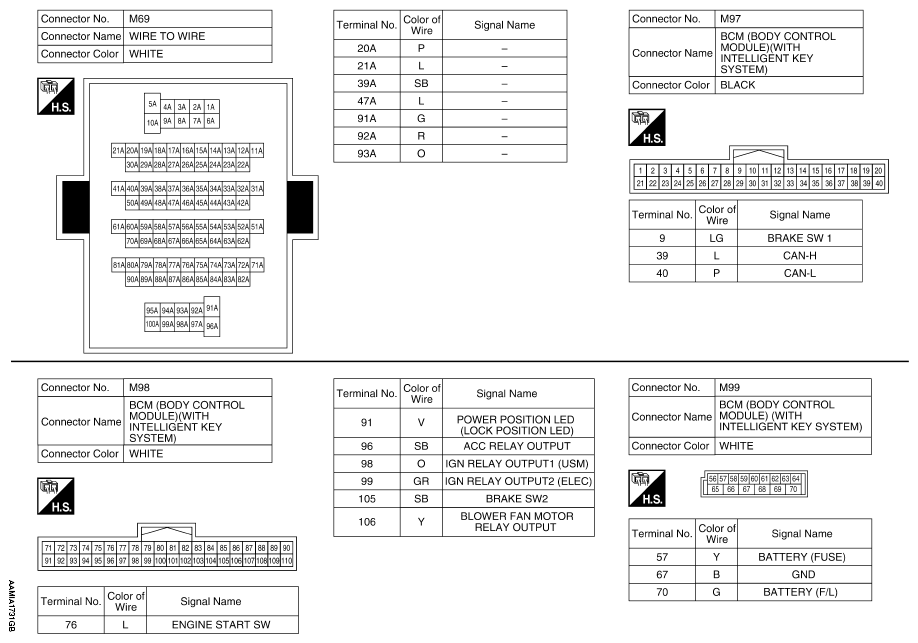

Fig 2: Power Distribution System Connector End View (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

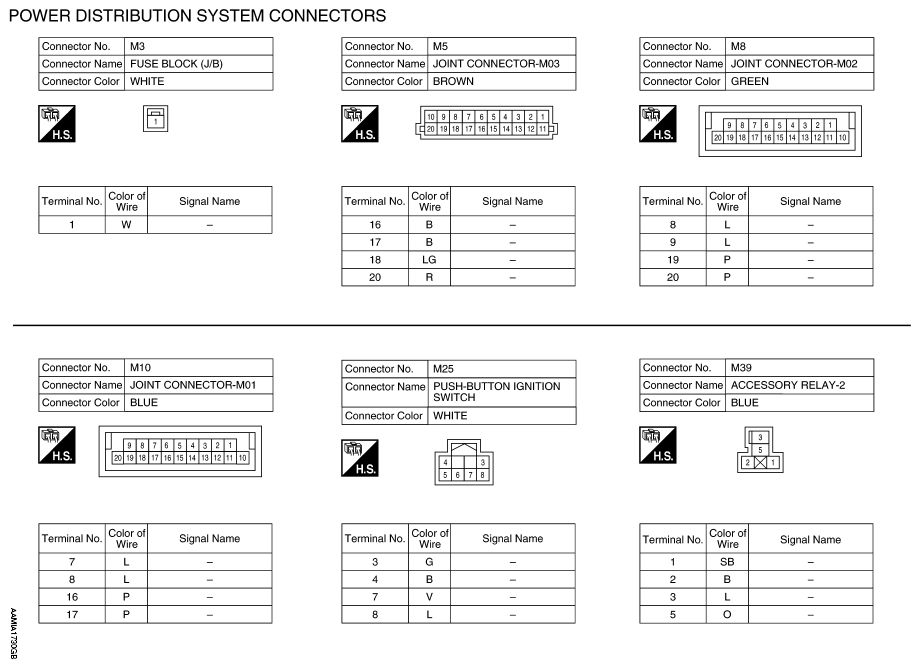

Fig 3: Power Distribution System Connector End View (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

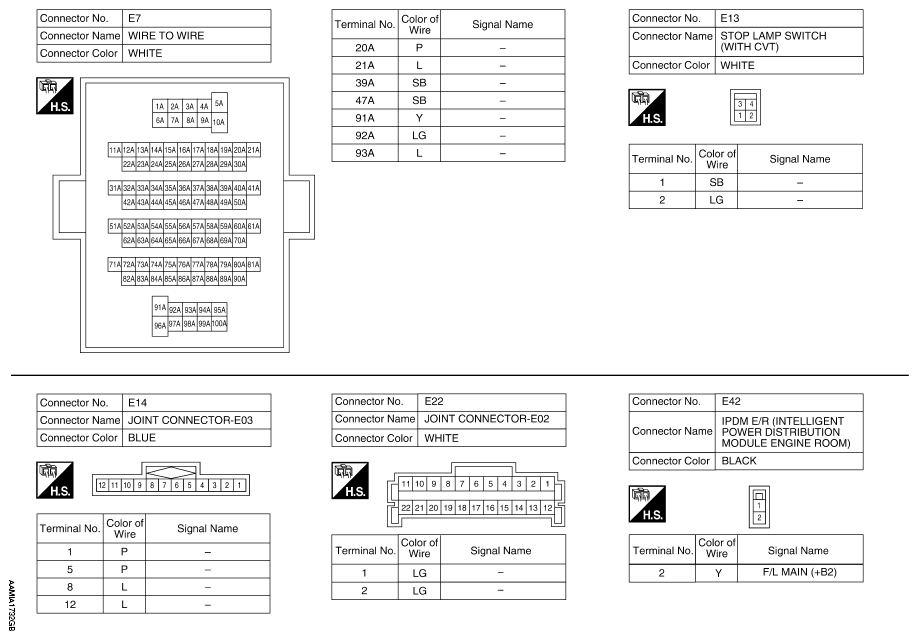

Fig 4: Power Distribution System Connector End View (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Power Distribution System Connector End View (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
