DRIVER SIDE: Exploded View
DRIVER SIDE: Exploded View
Fig 1: Exploded View Of Front Seat (Driver Seat With Lift) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

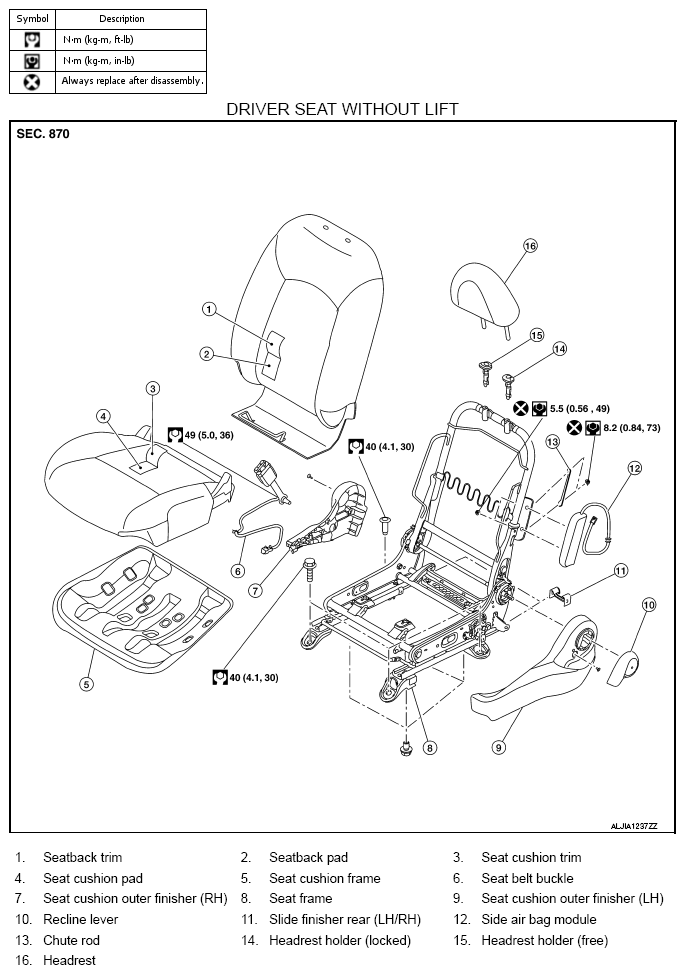

Fig 2: Exploded View Of Front Seat (Driver Seat Without Lift) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
