PASSENGER SIDE: Exploded View
PASSENGER SIDE: Exploded View

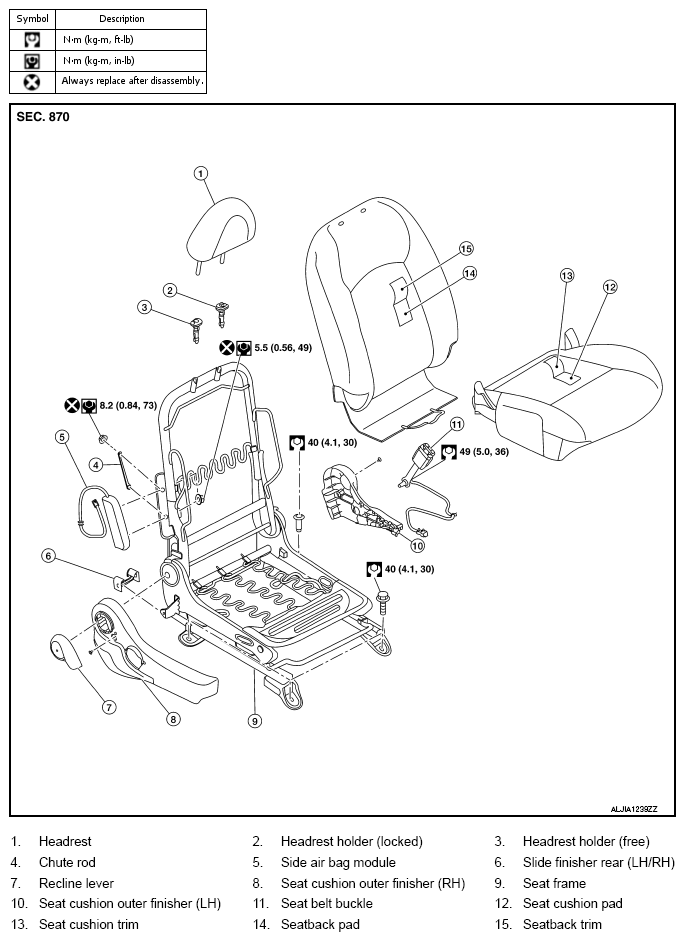

Fig 1: Exploded View Of Front Seat (Passenger Side) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
