Ignition Timing: Inspection

CHECK IGNITION TIMING

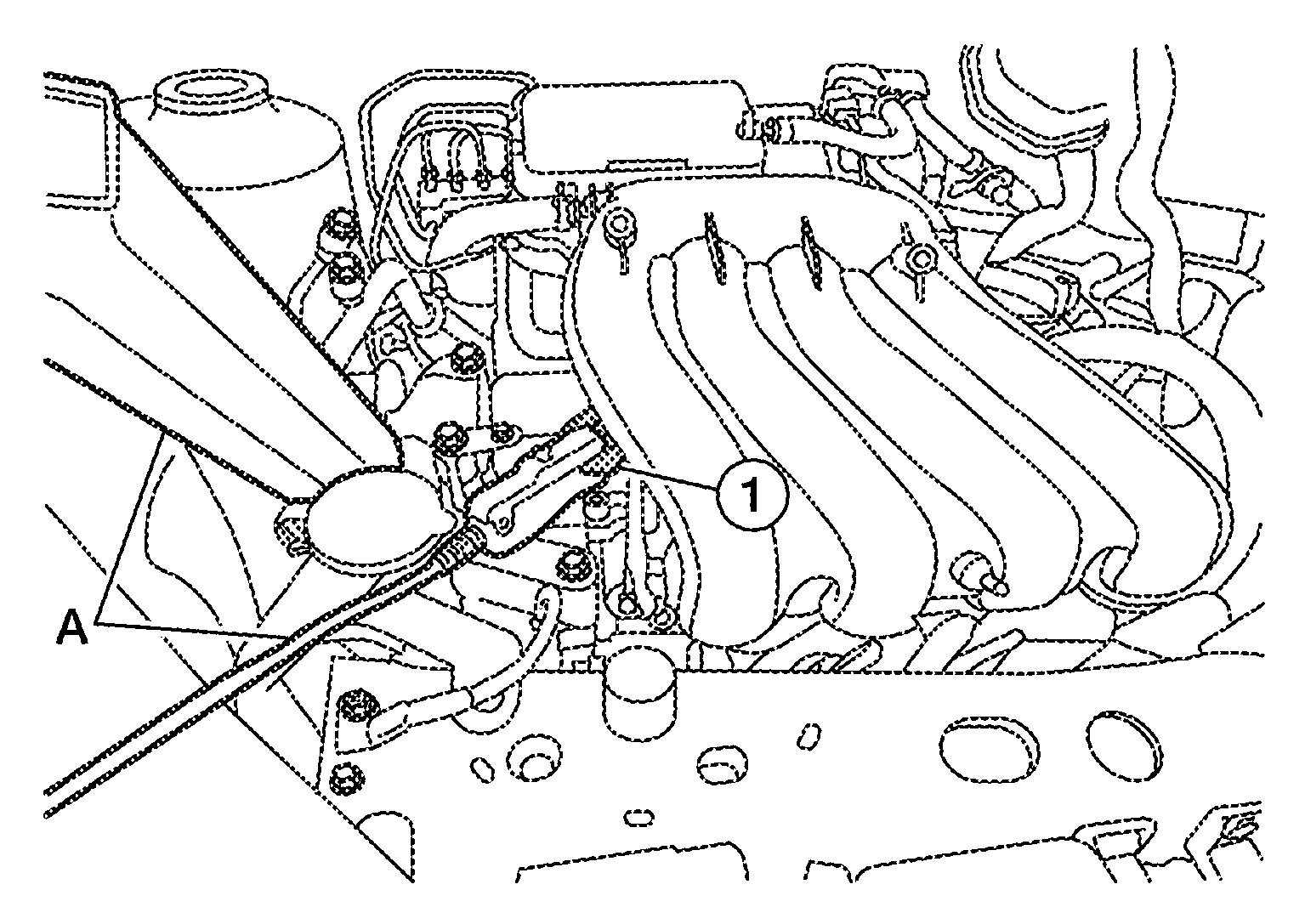

1. Attach timing light (A) to loop wire (1) as shown in the figure.

  Fig 1: Attaching Timing Light To Loop Wire
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

  Fig 2: Identifying Timing Indicator
  Courtesy of NISSAN NORTH AMERICA, INC.

  : INSPECTION END
