Engine Control System (Diagnostic Codes & Symptom Tests)
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Basic Engine Control System
System - Basic Engine Control System

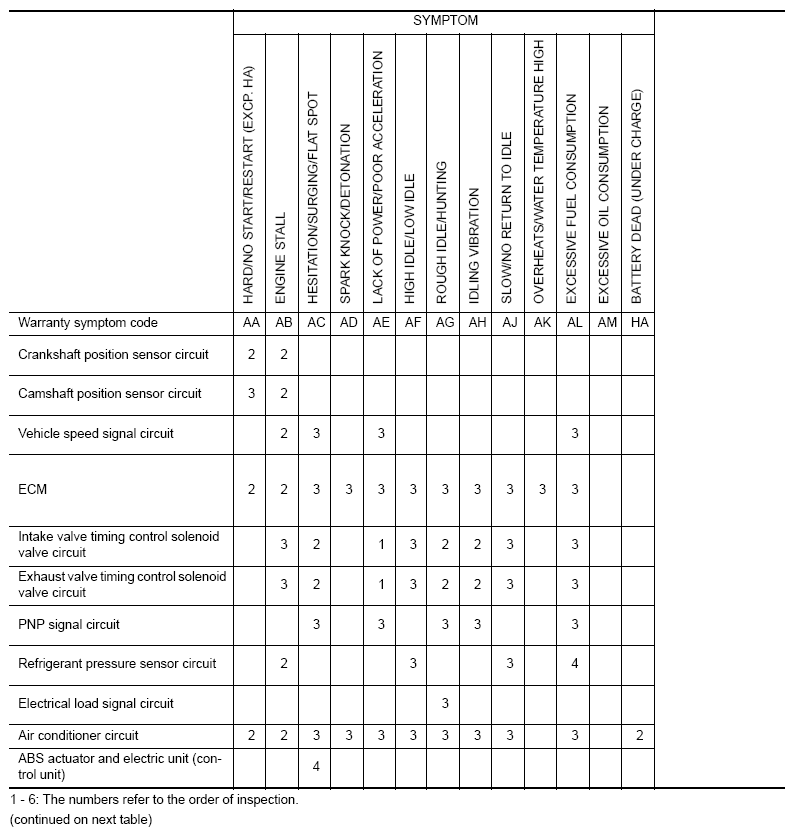

Fig 1: Symptoms Chart - System - Basic Engine Control System (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

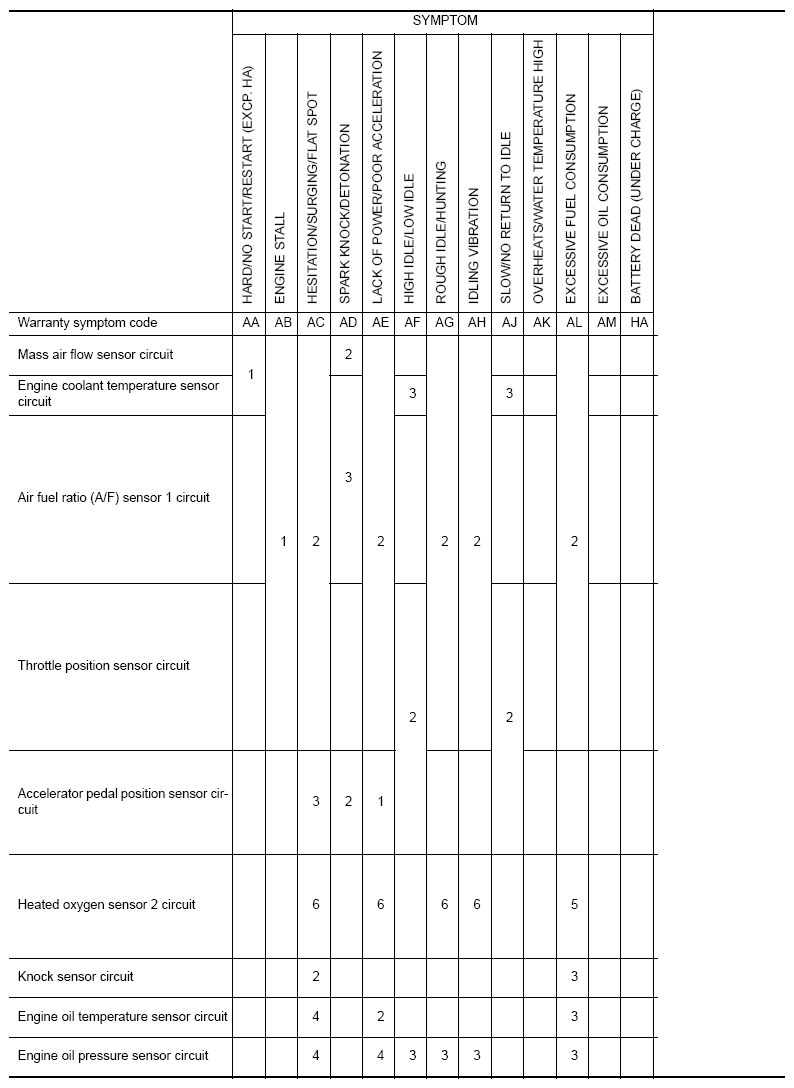

Fig 2: Symptoms Chart - System - Basic Engine Control System (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

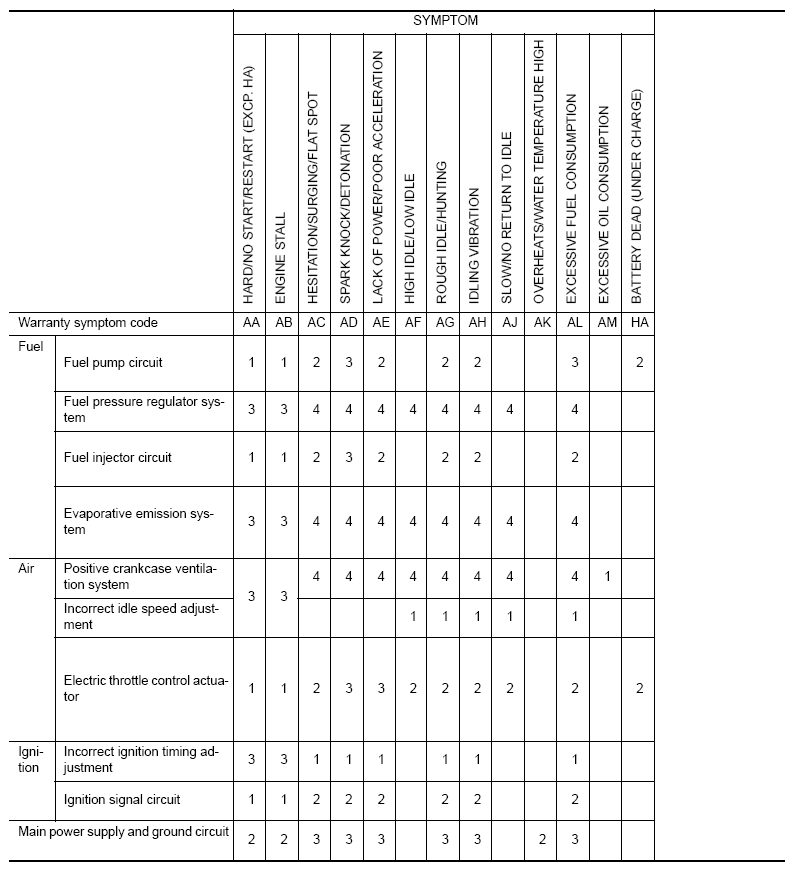

Fig 3: Symptoms Chart - System - Basic Engine Control System (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
