Side Air Bag Satellite Sensor

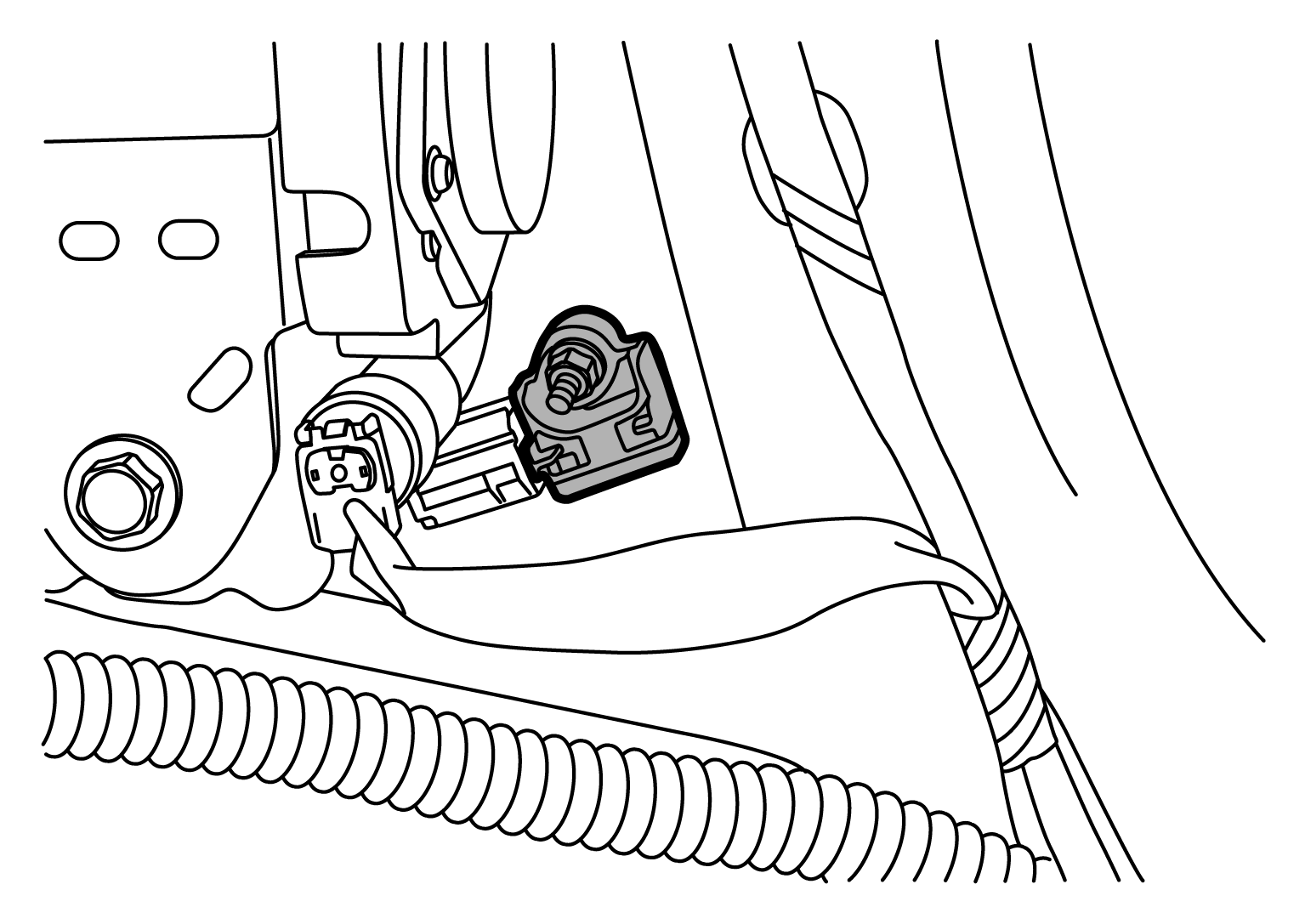

The side air bag satellite sensors are located on the center pillar LH and RH next to the seat belt pre-tensioners. The side air bag satellite sensors send signals to the air bag diagnosis sensor unit during a side collision. These sensors may be identified by yellow connectors.
