Starter Motor
›
Exploded View
›
Disassembly And Assembly
Disassembly And Assembly

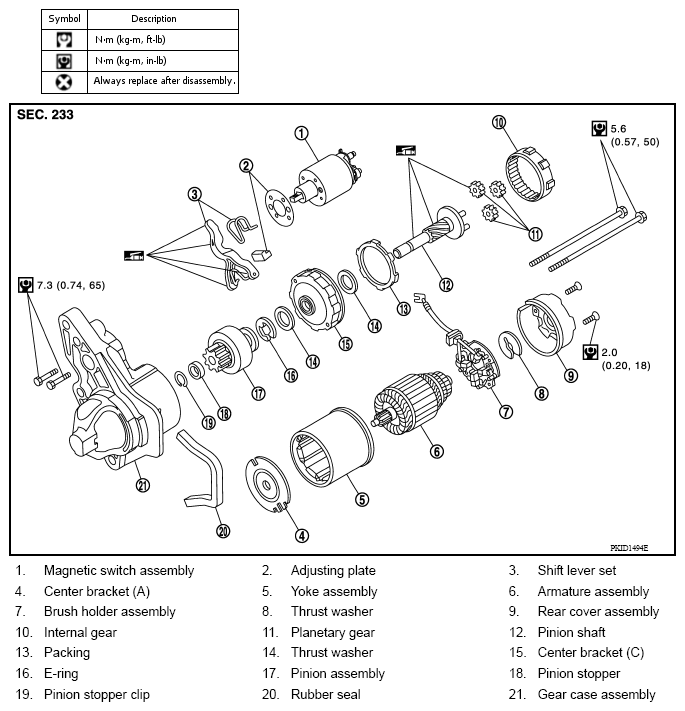

Fig 1: Disassembled View Of Starter Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
