Engine Lubrication System Schematic

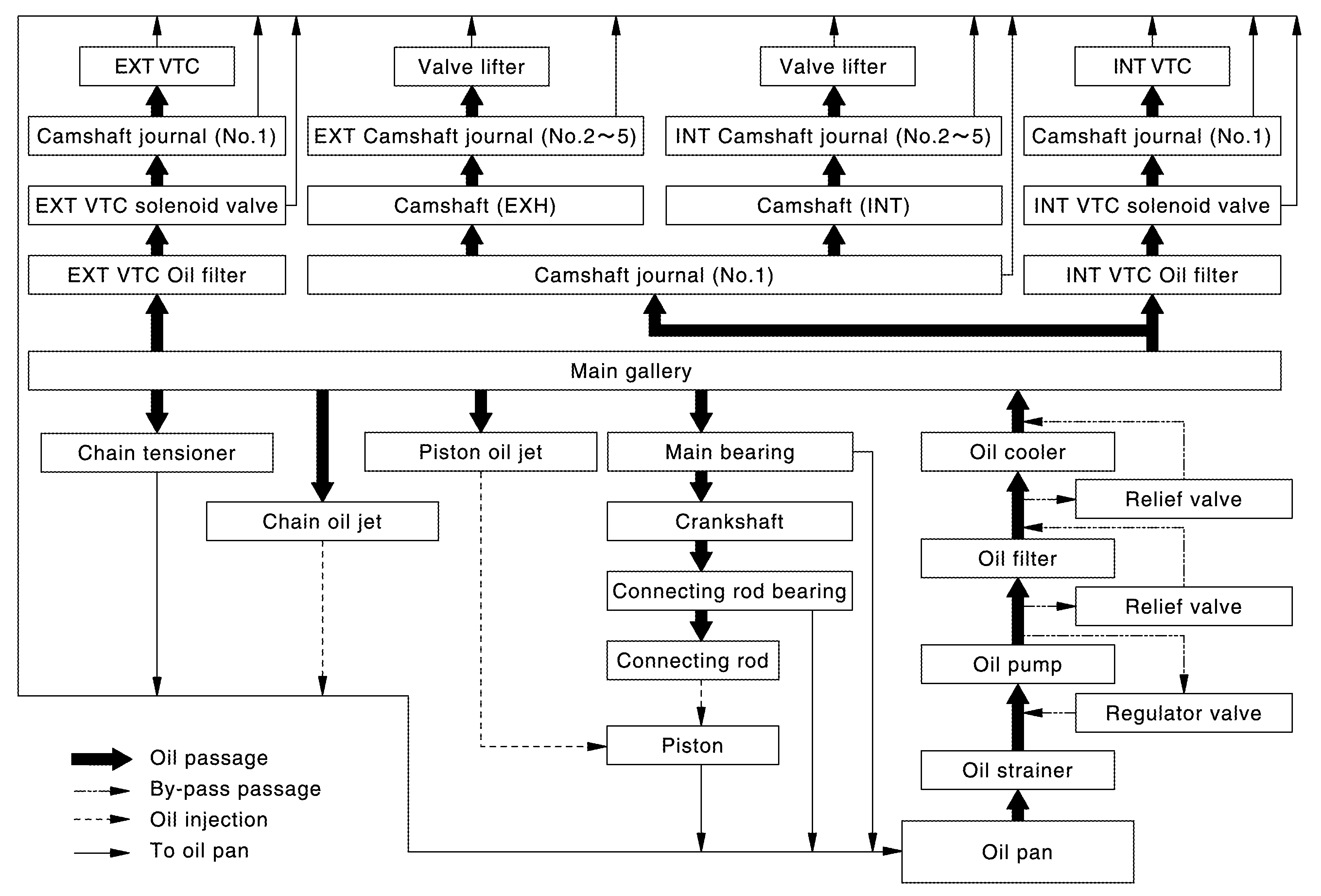

Fig 1: Engine Lubrication System Schematic
G08199365Courtesy of NISSAN NORTH AMERICA, INC.
