System - Basic Engine Control System

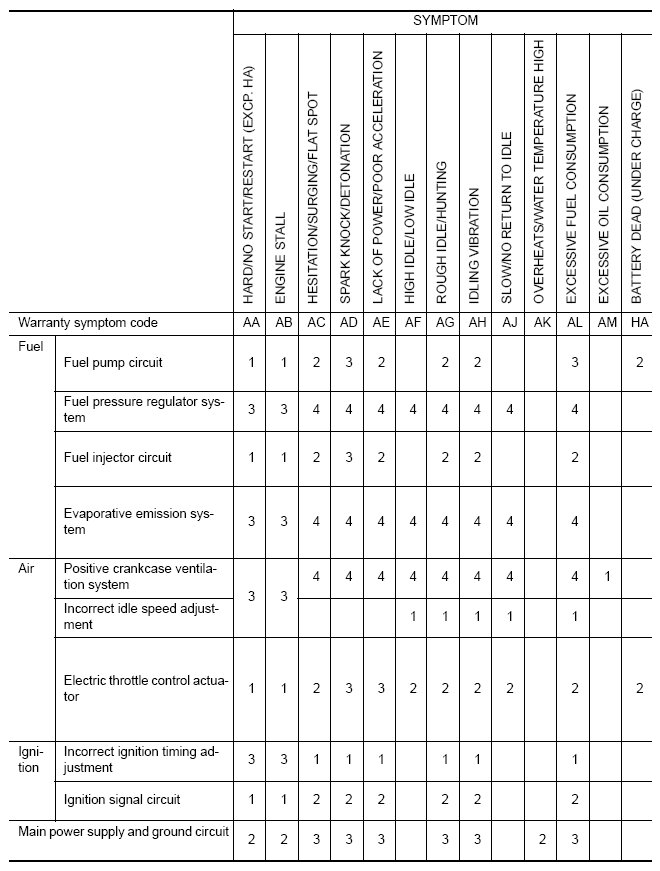

Fig 1: Basic Engine Control System Symptom Table (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

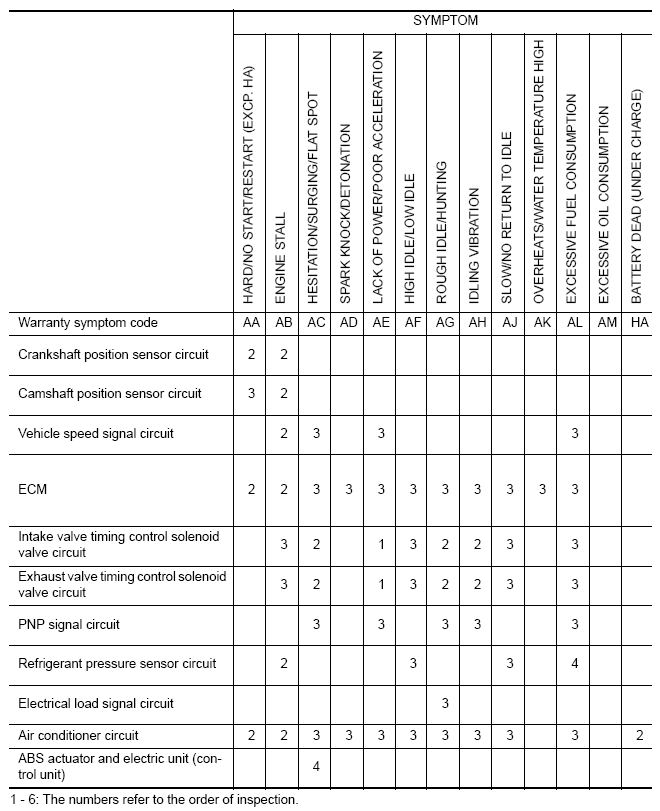

Fig 2: Basic Engine Control System Symptom Table (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

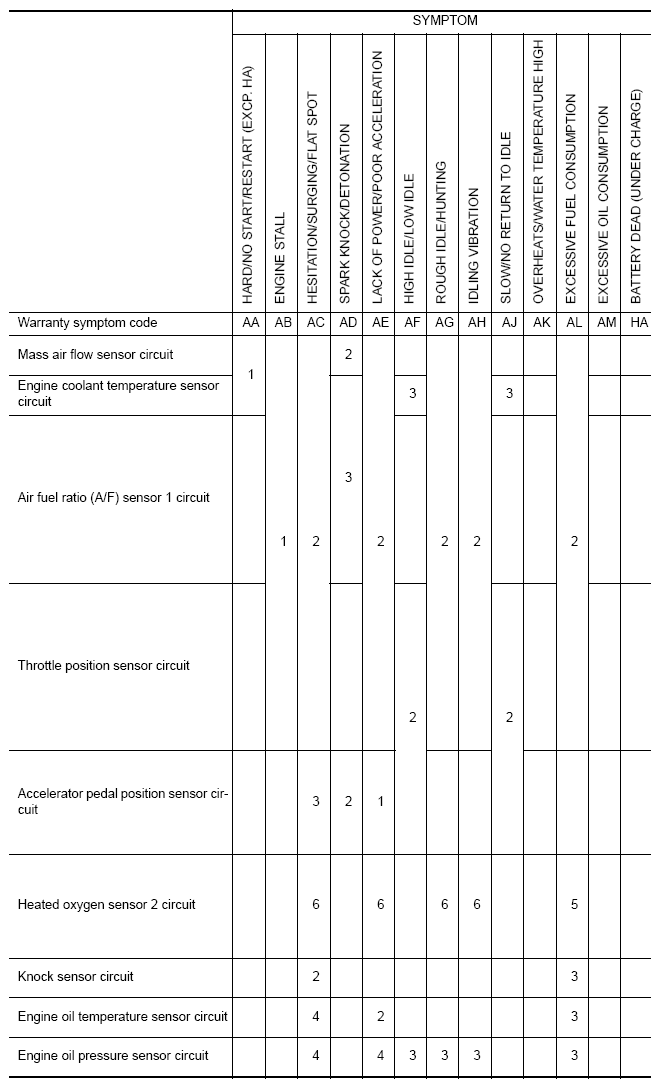

Fig 3: Basic Engine Control System Symptom Table (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
