Exploded View With Torque Specifications

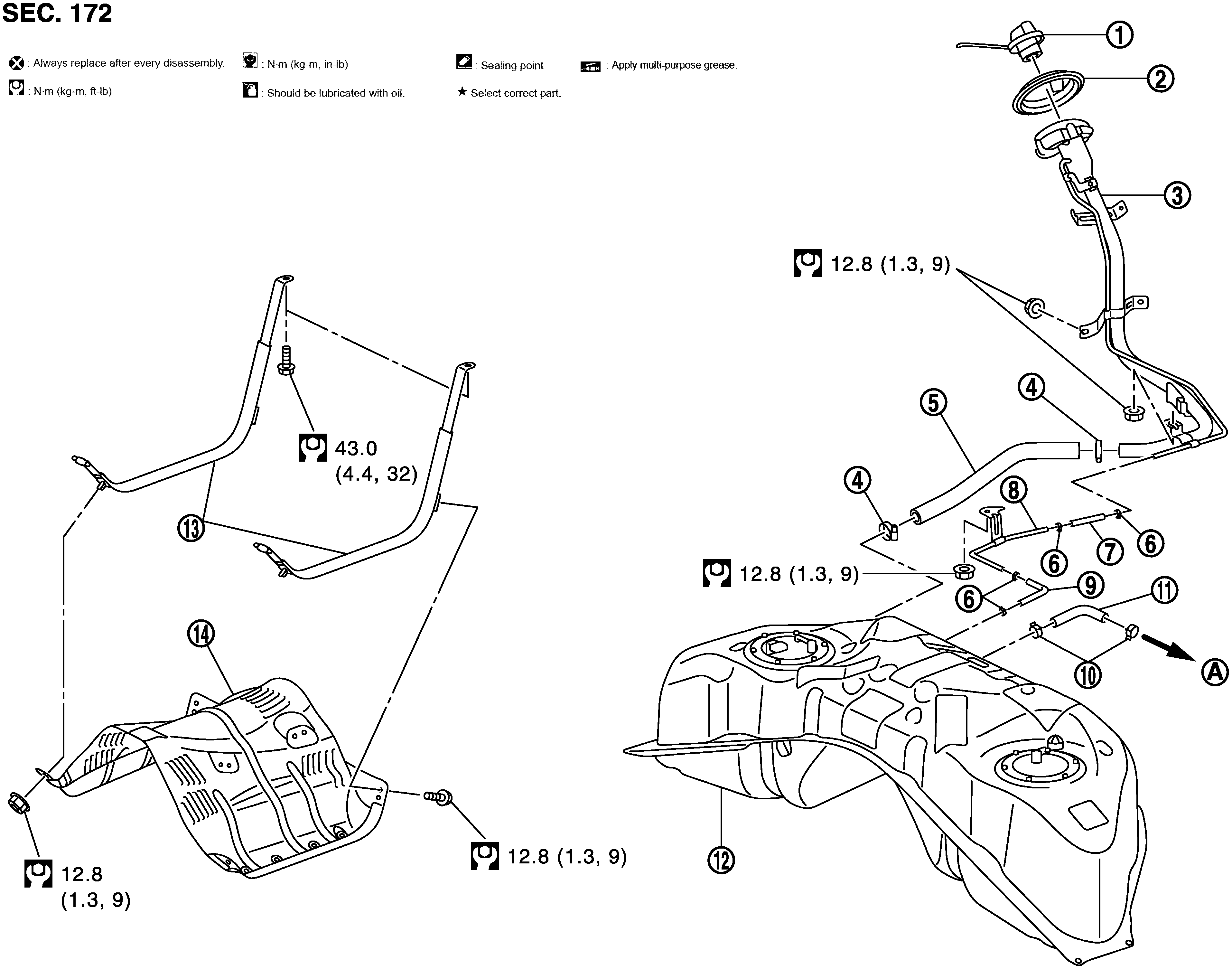

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel Filler Cap	2.	Grommet	3.	Fuel Filler Tube
4.	Clamp	5.	Fuel Filler Hose	6.	Clamp
7.	Vent Hose	8.	Vent Tube	9.	Vent Hose
10.	Clamp	11.	EVAP Hose	12.	Fuel Tank
13.	Fuel Tank Mounting Band	14.	Fuel Tank Protector
A.	To EVAP Canister
Refer to COMPONENTS for symbols in the figure.
