Exploded View With Torque Specifications

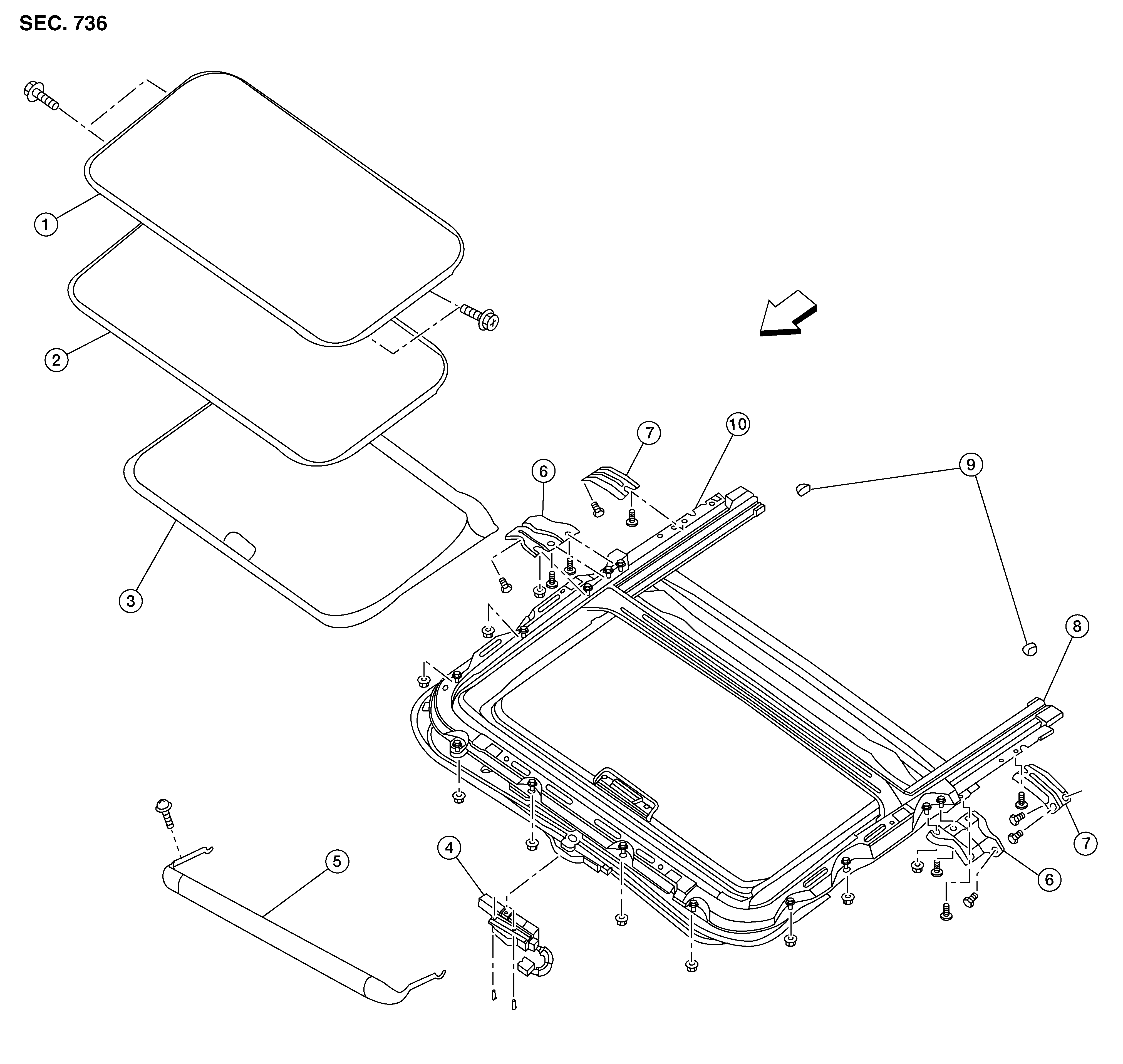

Fig 1: Exploded View Of Moonroof

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Glass lid	2.	Weatherstrip	3.	Sunshade
4.	Moonroof motor assembly	5.	Wind deflector	6.	Moonroof side bracket front
7.	Moonroof side bracket rear	8.	Drain hose connector	9.	Sunshade stoppers
7.	Moonroof side bracket rear		Front
