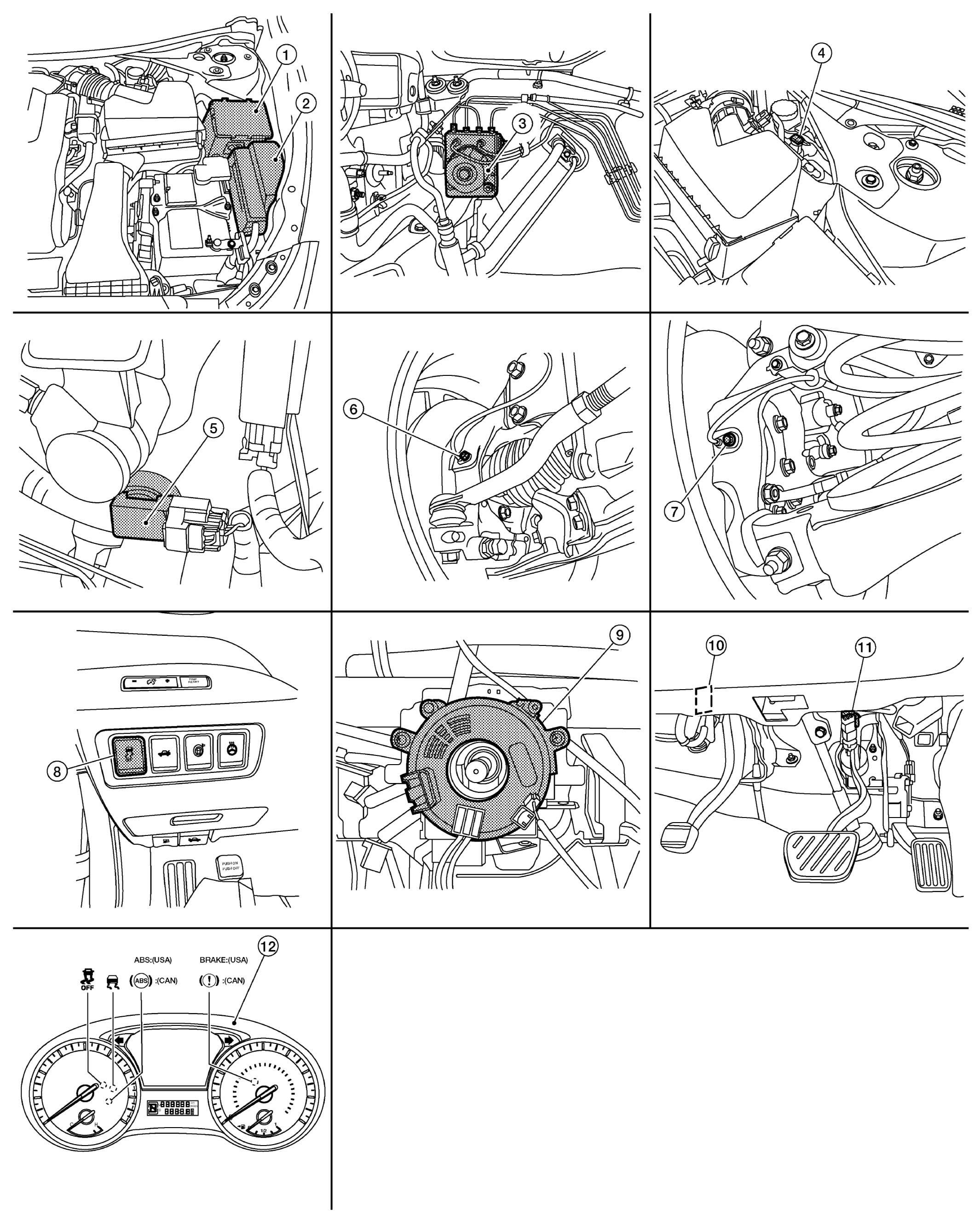

Component Parts Location
| 1. | IPDM E/R | 2. | Fuse, Fusible Link And Relay Box (Stop Lamp Relay) |
3. | ABS Actuator And Electric Unit (Control Unit) |
| 4. | Brake Fluid Level Switch | 5. | Vacuum Sensor (Attached To Lower Side Of Brake Booster) | 6. | Front Wheel Sensor LH (RH Similar) |
| 7. | Rear Wheel Sensor LH (RH Similar) | 8. | VDC OFF Switch | 9. | Steering Angle Sensor (View With Steering Wheel Removed) |
| 10. | Parking Brake Switch | 11. | Stop Lamp Switch | 12. | Combination Meter |
