IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Reference Value
›
Terminal Layout
Terminal Layout

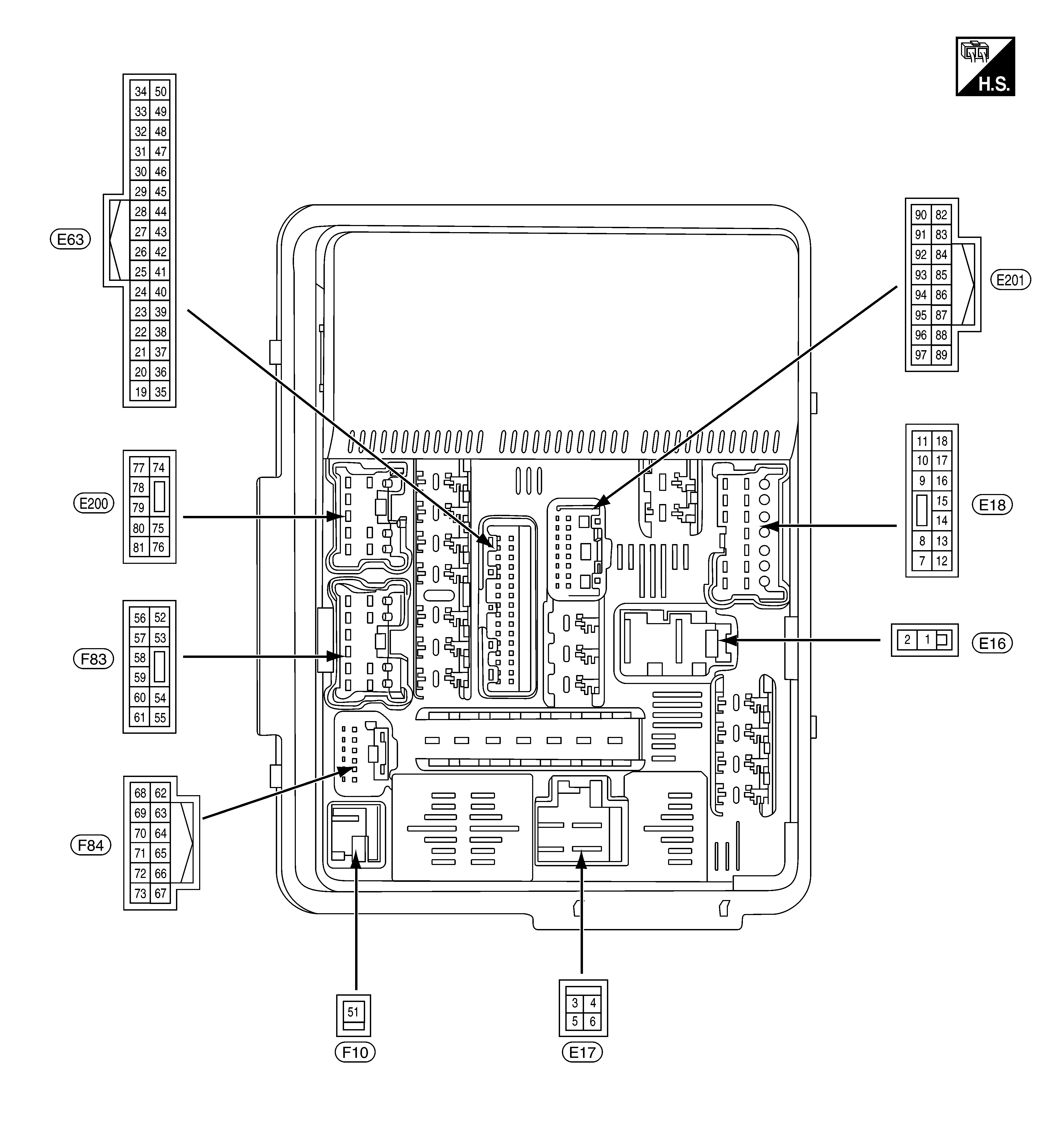

Fig 1: IPDM E/R Terminal Connector End View
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
