Power Control System
›
IPDM E/R
›
System Description
›
System
›
Relay Control System
›
System Diagram
System Diagram

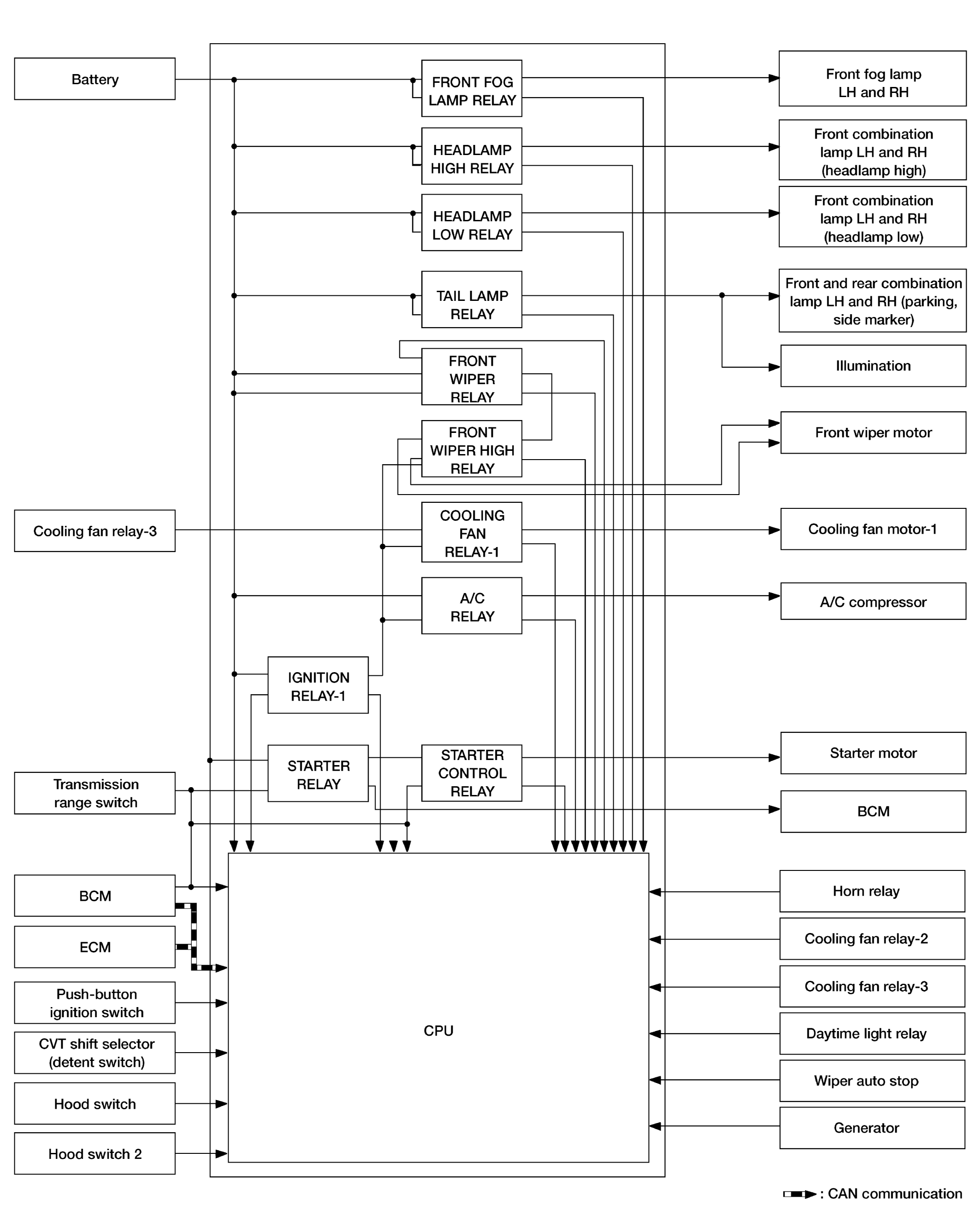

Fig 1: IPDM E/R Relay Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
