Exploded View With Torque Specifications
Exploded View With Torque Specifications

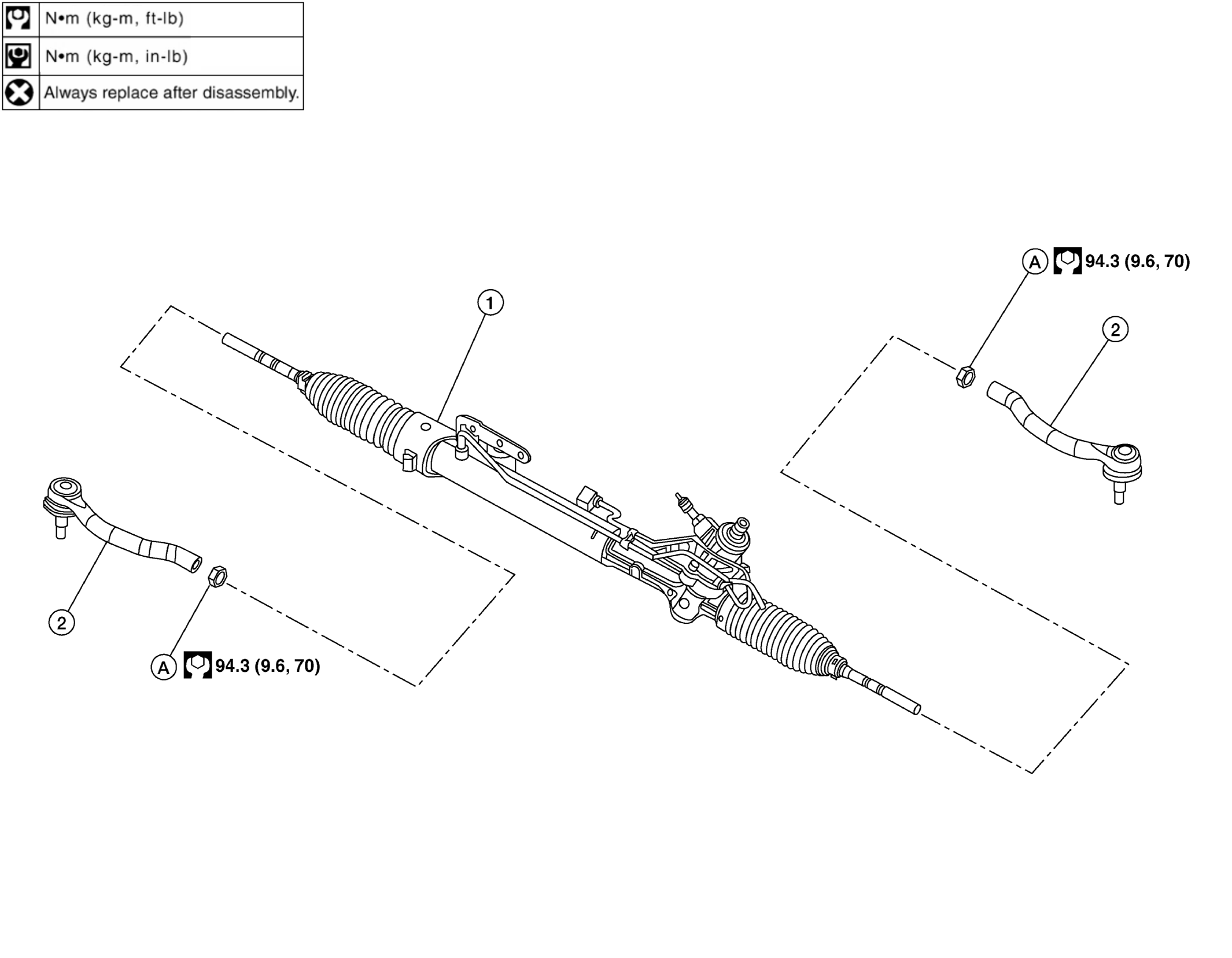

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering gear assembly
2.
Outer socket
A.
Inner socket lock nut
