Exploded View With Torque Specifications

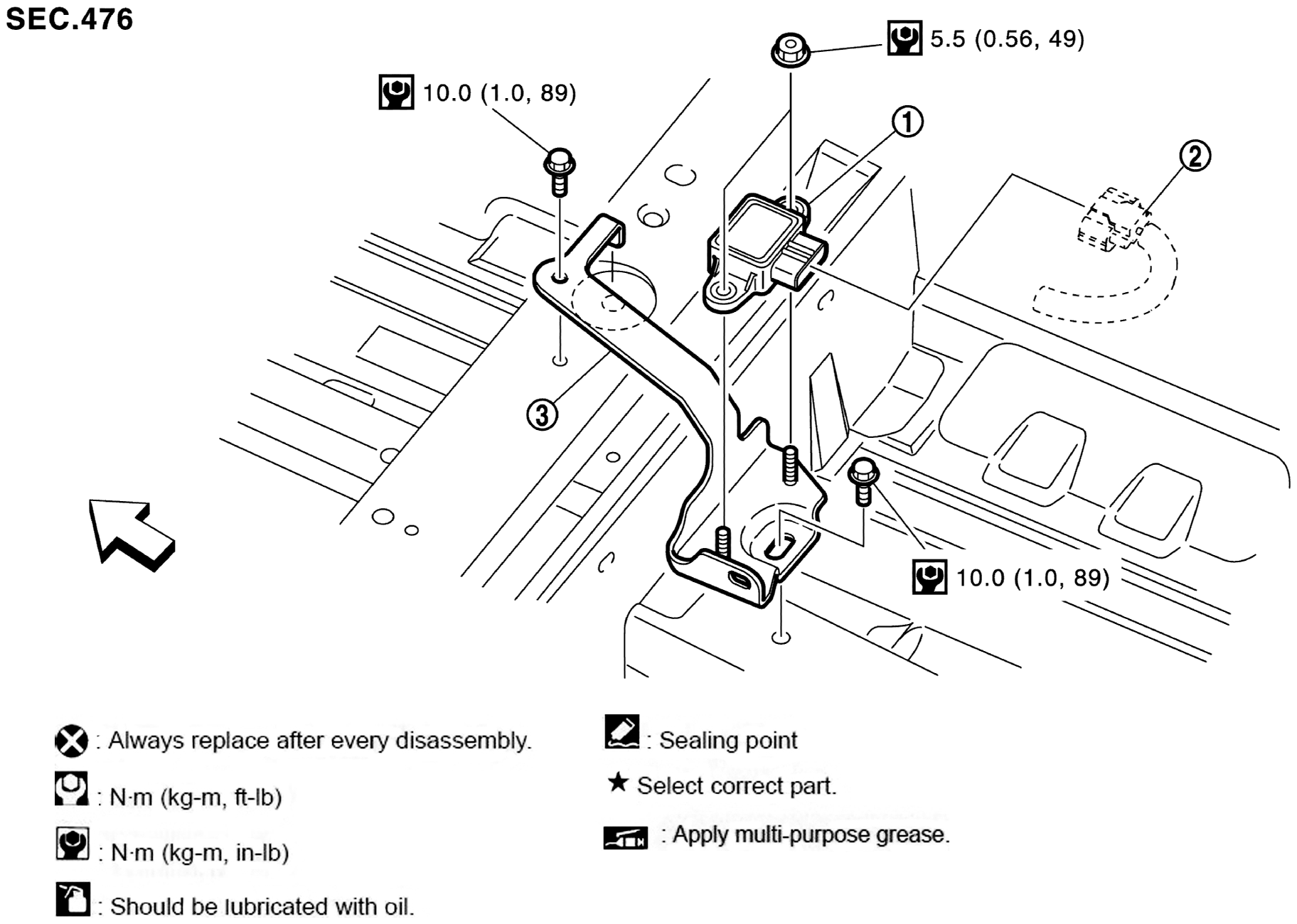

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Yaw Rate/Side/Decel G Sensor	2.	Yaw Rate/Side/Decel G Sensor Harness Connector	3.	Bracket
Arrow: Vehicle Front
