Engine Control System (Except NISMO RS - Introduction)
›
System Description
›
System
›
Thermal Management Control
›
System Diagram
System Diagram

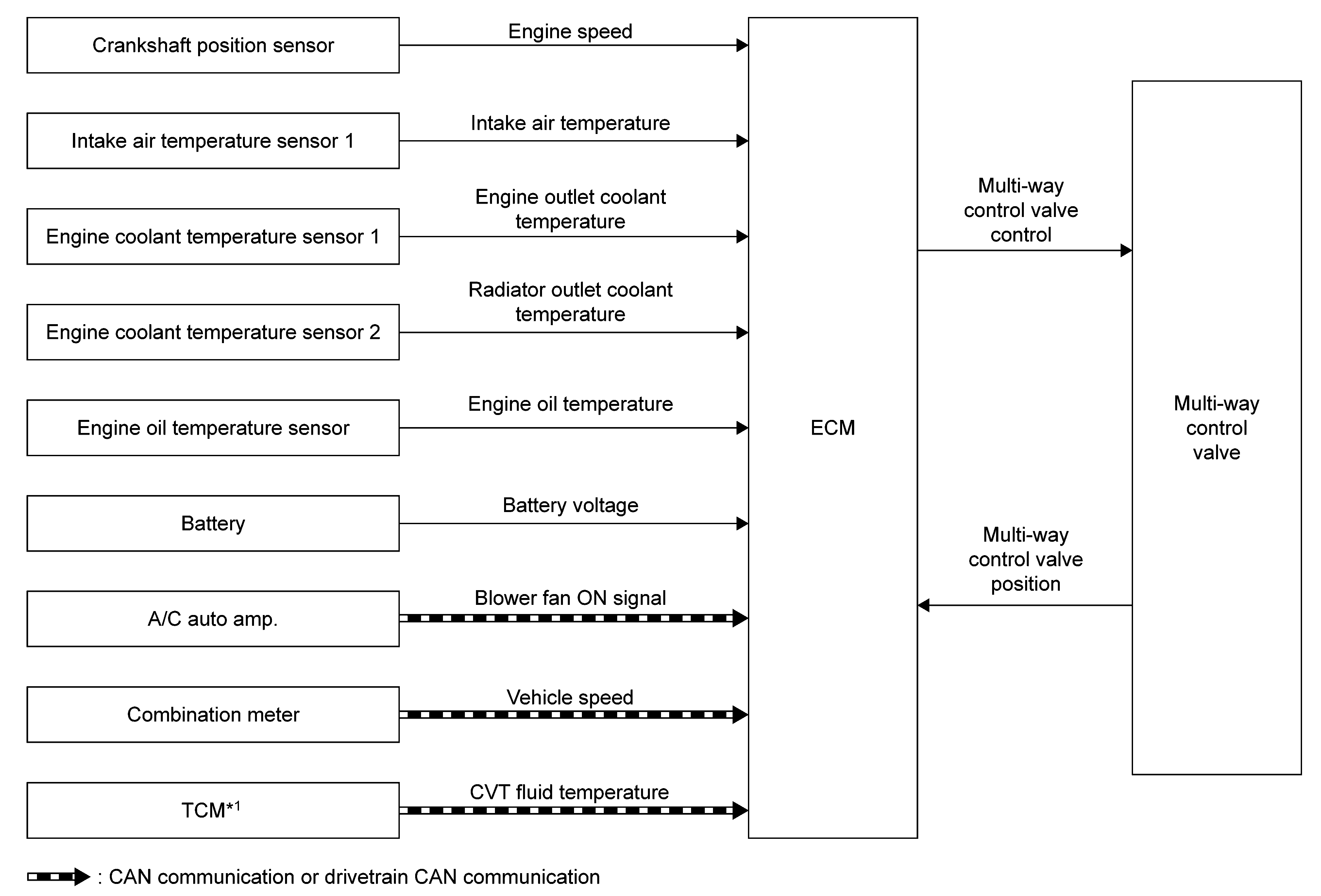

Fig 1: Thermal Management Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
* 1: For CVT models
Courtesy of NISSAN NORTH AMERICA, INC.
