EV Control System - Introduction
›
System Description
›
System
›
ECO Mode/B Mode System
›
System Description
›
System Diagram
System Diagram

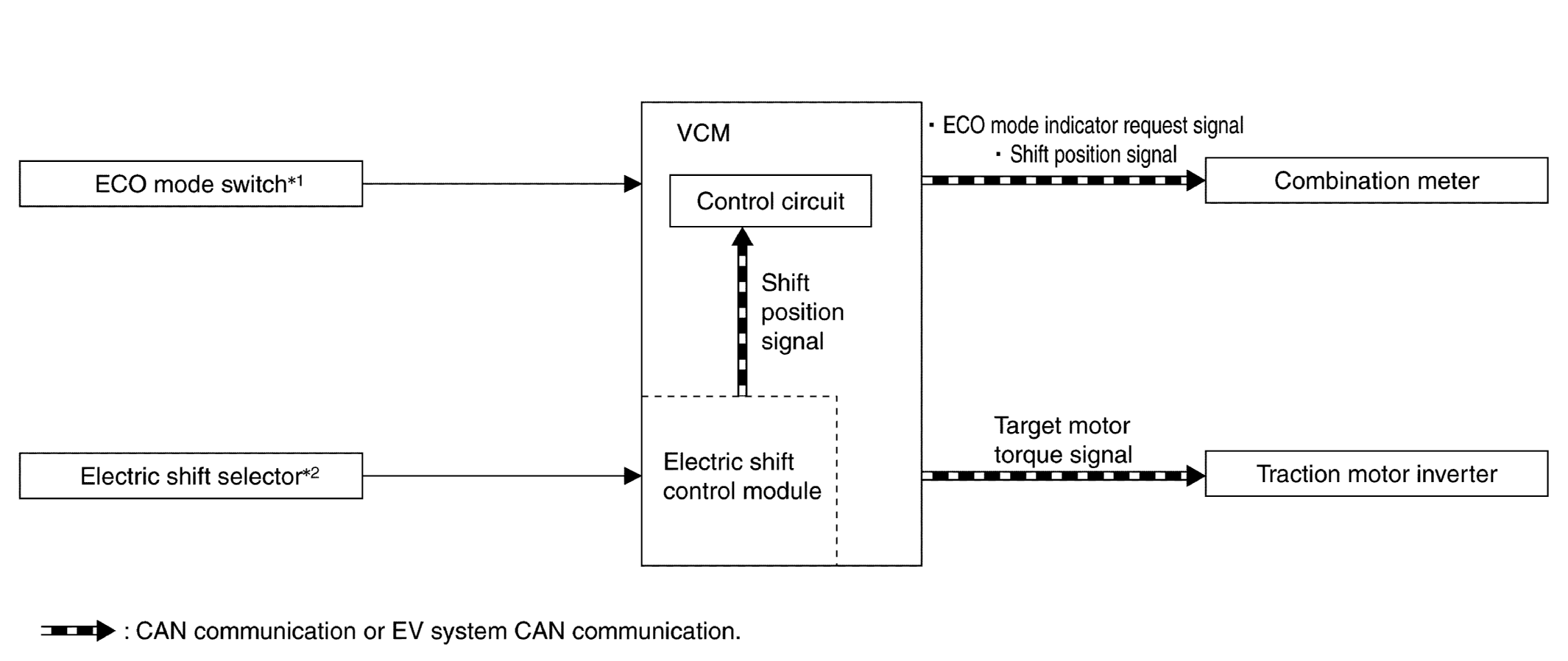

Fig 1: ECO Mode/B Mode System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
* 1: With steering switch
* 2: Without steering switch
Courtesy of NISSAN NORTH AMERICA, INC.
