Exploded View With Torque Specifications

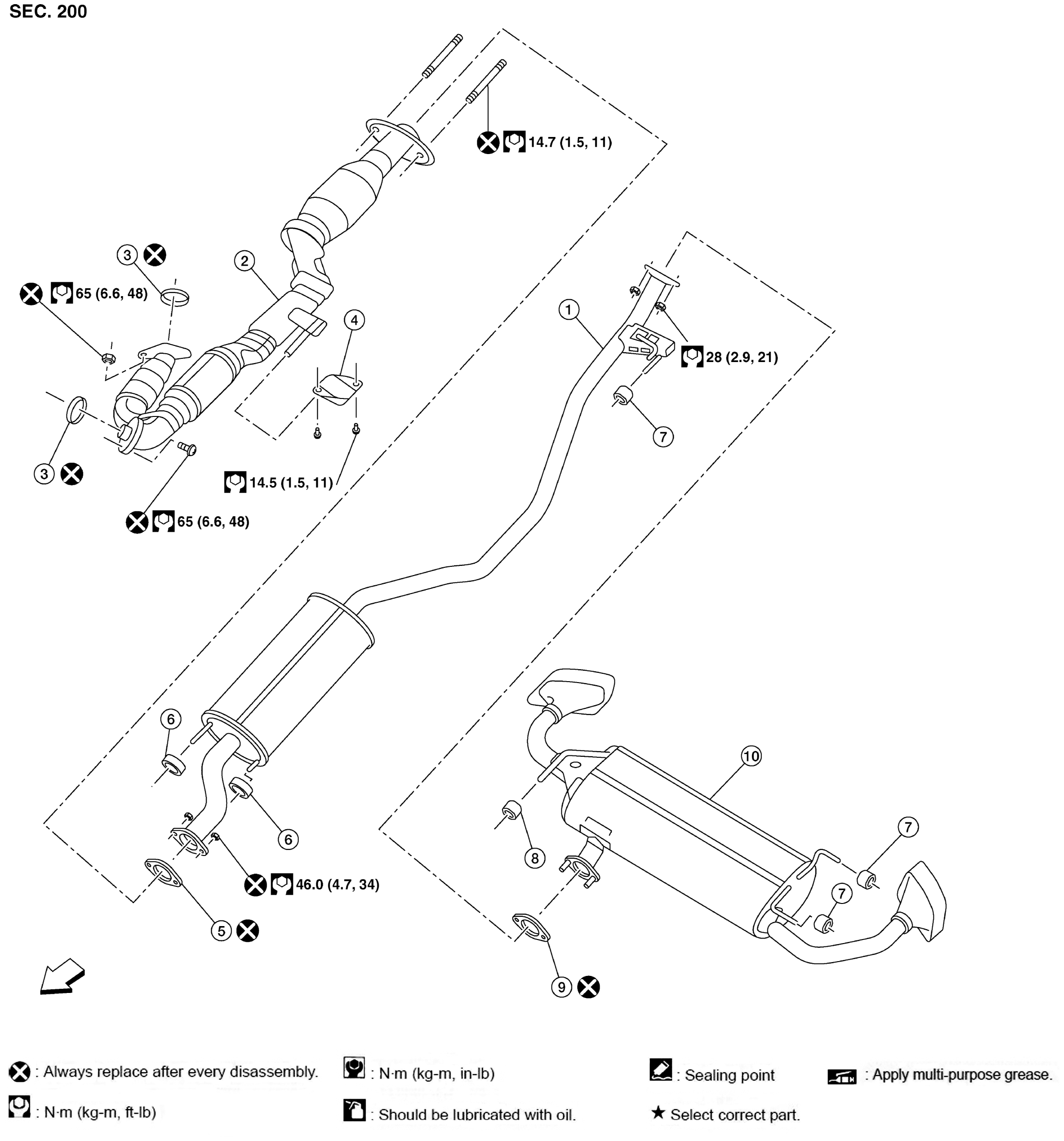

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center Exhaust Tube	2.	Front Exhaust Tube	3.	Ring Gasket
4.	Front Exhaust Tube Bracket	5.	Gasket	6.	Mounting Rubber
7.	Mounting Rubber	8.	Mounting Rubber	9.	Gasket
10.	Muffler	Arrow	Front
